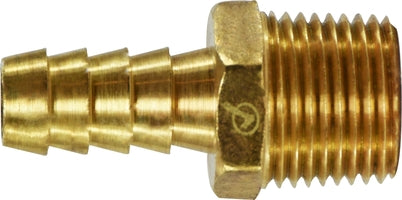

707001-0602 Midland Lead Free Hose Barb Fitting - Rigid Male Adapter - 3/8" Hose ID x 1/8" Male NPTF - Brass

707001-0602 by Midland | Lead Free Hose Barb Fitting | 3/8" Hose ID x 1/8" Male NPTF | Rigid Adapter | Brass | Replaces: 32011LF / 32-011LF

Save $0.22

$1.95

$1.95 - $1.95

$1.95

$1.73

$1.73 - $1.73

$1.73

Midland Industries
Lead Free Brass Fitting - Hose Barb Fitting - Rigid Male Adapter

Inventory @ Manufacturers Warehouse: 2254 Units

Quantity

Specifications for Variant SKU: 707001-0602 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 1/8in Male NPTF
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Used with plastic tubing or rubber hose.	Use:	Intended for use with hose clamp or crimp type ferrule.
Temperature Range	-40° to 200° F	Vibration Resistance:	Excellent
Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.	Lead Free:	Yes. Lead Free Info (PDF)

Features:
One piece, except swivels (nut and stem). Barbed edges provide positive connection. Barb size is hose ID.

Crossover Series:
LF29

Part Number	Hose ID x Male NPTF
07001-0202	1/8" x 1/8"
707001-0204	1/8" x 1/4"
707001-0302	3/16" x 1/8"
707001-0304	3/16" x 1/4"
707001-0402	1/4" x 1/8"
707001-0404	1/4" x 1/4"
707001-0406	1/4" x 3/8"
707001-0408	1/4" x 1/2"
707001-0502	5/16" x 1/8"
707001-0504	5/16" x 1/4"
707001-0506	5/16" x 3/8"
707001-0602	3/8" x 1/8"
707001-0604	3/8" x 1/4"
707001-0606	3/8" x 3/8"
707001-0608	3/8" x 1/2"
707001-0804	1/2" x 1/4"
707001-0806	1/2" x 3/8"
707001-0808	1/2" x 1/2"
707001-0812	1/2" x 3/4"
707001-1006	5/8" x 3/8"
707001-1008	5/8" x 1/2"
707001-1012	5/8" x 3/4"
707001-1208	3/4" x 1/2"
707001-1212	3/4" x 3/4"
707001-1612	1" x 3/4"
707001-1616	1" x 1"
