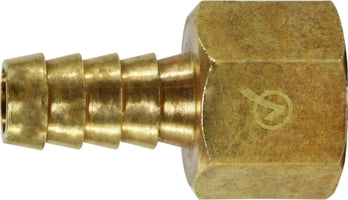

707002-0504 Midland Lead Free Hose Barb Fitting - Rigid Female Adapter - 5/16" Hose ID x 1/4" Female NPTF - Brass

707002-0504 by Midland | Lead Free Hose Barb Fitting | 5/16" Hose ID x 1/4" Female NPTF | Rigid Adapter | Brass | Replaces: 32056LF / 32-056LF

Save $0.37

$3.33

$3.33 - $3.33

$3.33

$2.96

$2.96 - $2.96

$2.96

Midland Industries
Lead Free Brass Fitting - Hose Barb Fitting - Rigid Female Adapter

Inventory @ Manufacturers Warehouse: 2308 Units

Quantity

Specifications for Variant SKU: 707002-0504 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/16in Hose Barb, 1/4in Female NPTF
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Used with plastic tubing or rubber hose.	Use:	Intended for use with hose clamp or crimp type ferrule.
Temperature Range	-40° to 200° F	Vibration Resistance:	Excellent
Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.	Lead Free:	Yes. Lead Free Info (PDF)

Features:
One piece, except swivels (nut and stem). Barbed edges provide positive connection. Barb size is hose ID.

Crossover Series:
LF29F

Part Number	Hose ID x Female NPTF
707002-0202	1/8" x 1/8"
707002-0204	1/8" x 1/4"
707002-0302	3/16" x 1/8"
707002-0304	3/16" x 1/4"
707002-0402	1/4" x 1/8"
707002-0404	1/4" x 1/4"
707002-0406	1/4" x 3/8"
707002-0502	5/16" x 1/8"
707002-0504	5/16" x 1/4"
707002-0506	5/16" x 3/8"
707002-0604	3/8" x 1/4"
707002-0606	3/8" x 3/8"
707002-0608	3/8" x 1/2"
707002-0804	1/2" x 1/4"
707002-0806	1/2" x 3/8"
707002-0808	1/2" x 1/2"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
