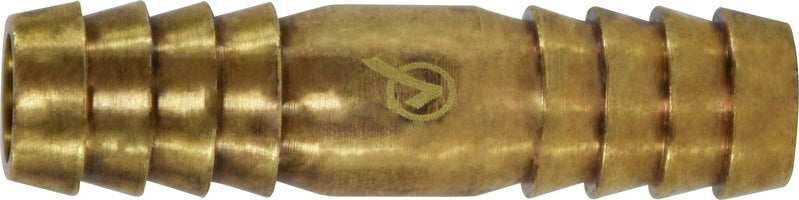

707014-08 Midland Lead Free Hose Barb Fitting - Mender/Splicer - 1/2" Hose ID x 1/2" Hose ID - Brass

707014-08 by Midland | Lead Free Hose Barb Fitting | Mender/Splicer | 1/2" Hose ID x 1/2" Hose ID | Brass | Replaces: 32096LF / 32-096LF

Save $0.36

$3.20

$3.20 - $3.20

$3.20

$2.84

$2.84 - $2.84

$2.84

Midland Industries
Lead Free Brass Fitting - Hose Barb Fitting - Mender/Splicer

Inventory @ Manufacturers Warehouse: 2822 Units

Quantity

Specifications for Variant SKU: 707014-08 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 1/2in Hose Barb, Some Ends Match
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Used with plastic tubing or rubber hose.	Use:	Intended for use with hose clamp or crimp type ferrule.
Temperature Range	-40° to 200° F	Vibration Resistance:	Excellent
Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.	Lead Free:	Yes. Lead Free Info (PDF)

Features:
One piece, except swivels (nut and stem). Barbed edges provide positive connection. Barb size is hose ID.

Part Number	Hose ID x Hose ID
707014-03	3/16" x 3/16"
707014-04	1/4" x 1/4"
707014-05	5/16" x 5/16"
707014-06	3/8" x 3/8"
707014-08	1/2" x 1/2"
707014-10	5/8" x 5/8"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
