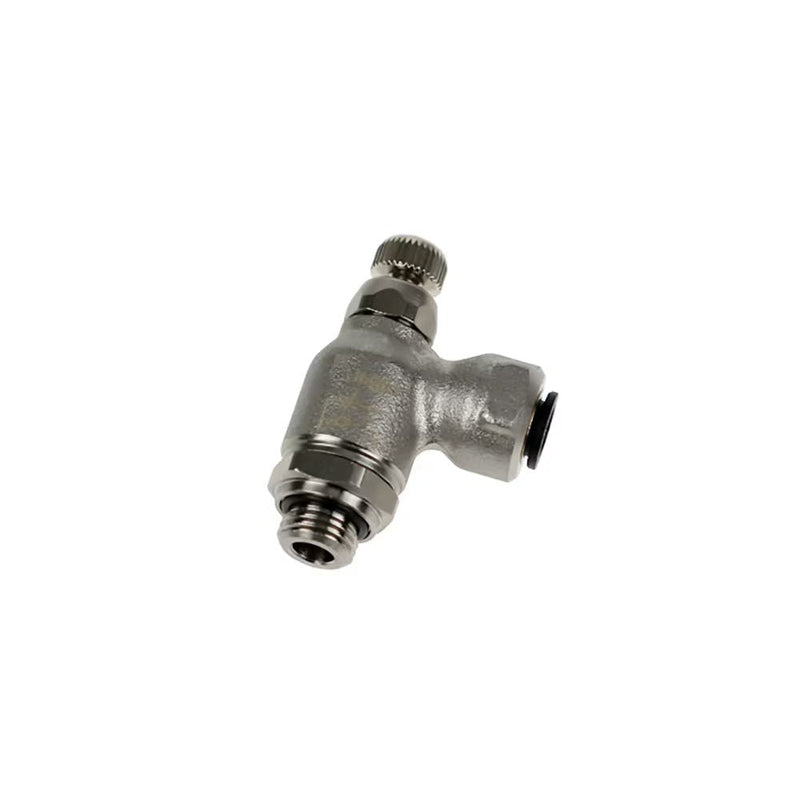

7100 10 13 by Parker | Legris Compact Flow Regulator | 10 mm Tube Size x 1/4" Male BSPP Thread | 19 mm Hex | 90° Elbow | Nickel-Plated Brass

7100 10 13 by Parker | Legris Compact Flow Regulator | 10mm Tube Size x 1/4" Male BSPP Thread | 19mm Hex | 90° Elbow | Nickel-Plated Brass

Save $26.79 Save $26.79
$66.98
$66.98 - $66.98
$66.98
$40.19
$40.19 - $40.19
$40.19

by Parker Hannifin
Flow Control Regulators:7100 Compact Flow Regulator, Exhaust, Male BSPP Thread
Specifications for Variant SKU: 7100 10 13 Parker
Series: 7100 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:

    Productivity:

  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed

    • Accuracy:

  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow

    • Ergonomics:

  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C F F1 H (max) H (min) H1 L Kg
7100 04 10 4 mm 1/8" 10 mm 19 mm 53 mm 47 mm 23 mm 21 mm .080 Kg
7100 06 10 6 mm 1/8" 10 mm 19 mm 53 mm 47 mm 23 mm 24.5 mm .082 Kg
7100 06 13 6 mm 1/4" 10 mm 19 mm 53 mm 47.5 mm 23.5 mm 24.5 mm .085 Kg
7100 08 10 8 mm 1/8" 14 mm 19 mm 56 mm 50 mm 25 mm 29 mm .101 Kg
7100 08 13 8 mm 1/4" 14 mm 19 mm 55 mm 50 mm 24.5 mm 29 mm .097 Kg
7100 08 17 8 mm 3/8" 17 mm 25 mm 62 mm 56 mm 27 mm 30.5 mm .154 Kg
7100 10 13 10 mm 1/4" 14 mm 19 mm 56 mm 50 mm 25 mm 35 mm .106 Kg
7100 10 17 10 mm 3/8" 17 mm 25 mm 62 mm 56 mm 27 mm 35 mm .157 Kg
7100 12 17 12 mm 3/8" 17 mm 25 mm 62 mm 56 mm 27 mm 38 mm .198 Kg
7100 12 21 12 mm 1/2" 17 mm 25 mm 62 mm 55 mm 27 mm 38 mm .207 Kg
7100 14 21 14 mm 1/2" 17 mm 25 mm 62 mm 55 mm 27 mm 41 mm .205 Kg
