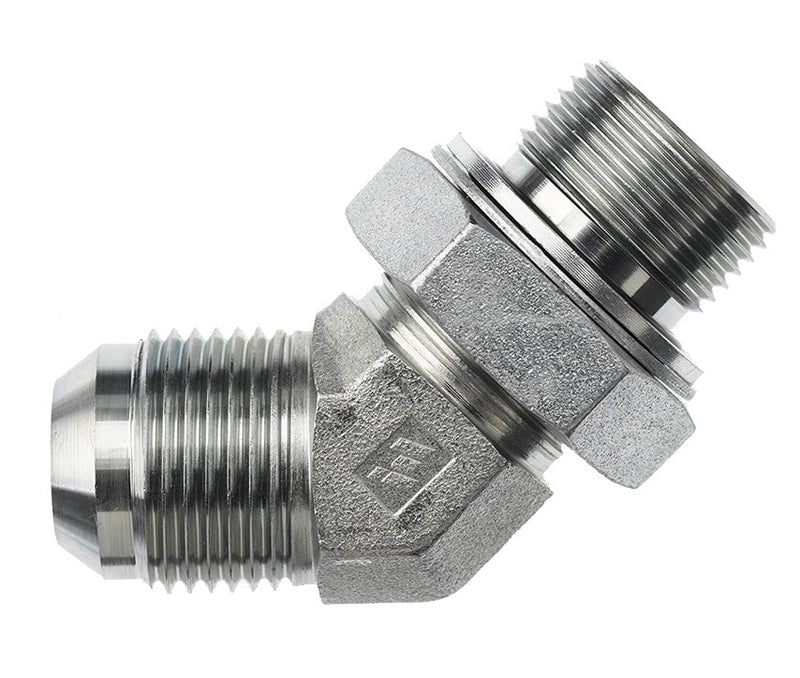

7102-08-08-NWO-FG by Brennan Inc. | -08 Male JIC x -08 Male BSPP Adjustable O-Ring Boss | 45° Elbow | Forged Steel

7102-08-08-NWO-FG by Brennan Inc. | -08 Male JIC x -08 Male BSPP Adjustable O-Ring Boss | 45° Elbow | Forged Steel

Save $10.03 Save $10.03
$25.08
$25.08 - $25.08
$25.08
$15.05
$15.05 - $15.05
$15.05

Brennan Inc.
Conversion Adapters: 7102 - Male JIC x Male BSPP Adjustable O-Ring Boss 45° Elbow
Specifications for Variant SKU: 7102-08-08-NWO-FG Brennan
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Male JIC, 1/2in Male O-Ring Boss
Material(s): Steel
Part Number Material B1JIC 37° B2BSPP B1Drill B2Drill MLength LLength CHex YFlats
7102-04-04-NWO-FG Steel 7/16-20" 1/4-19" 4.10mm 7.60mm 20.80mm 29.00mm 19.00mm 14.00mm
7102-06-04-NWO-FG Steel 9/16-18" 1/4-19" 7.10mm 7.60mm 21.10mm 26.80mm 19.00mm 14.10mm
7102-06-06-NWO-FG Steel 9/16-18" 3/8-19" 7.50mm 9.90mm 22.00mm 33.00mm 22.00mm 19.00mm
7102-06-08-NWO-FG Steel 9/16-18" 1/2-14" 7.50mm 12.30mm 22.20mm 38.50mm 27.00mm 22.00mm
7102-08-06-NWO-FG Steel 3/4-16" 3/8-19" 9.90mm 9.90mm 24.90mm 33.00mm 22.00mm 19.00mm
7102-08-08-NWO-FG Steel 3/4-16" 1/2-14" 9.90mm 12.30mm 25.20mm 38.50mm 27.00mm 22.20mm
7102-10-08-NWO-FG Steel 7/8-14" 1/2-14" 12.20mm 12.40mm 28.20mm 38.60mm 27.00mm 22.10mm
7102-12-08-NWO-FG Steel 1-1/16-12" 1/2-14" 15.20mm 12.30mm 32.50mm 44.00mm 27.00mm 27.00mm
7102-12-12-NWO-FG Steel 1-1/16-12" 3/4-14" 15.50mm 15.50mm 32.50mm 44.00mm 36.00mm 27.00mm
7102-16-16-NWO-FG Steel 1-5/16-12" 1-11" 21.40mm 21.50mm 37.20mm 47.20mm 41.00mm 33.30mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
