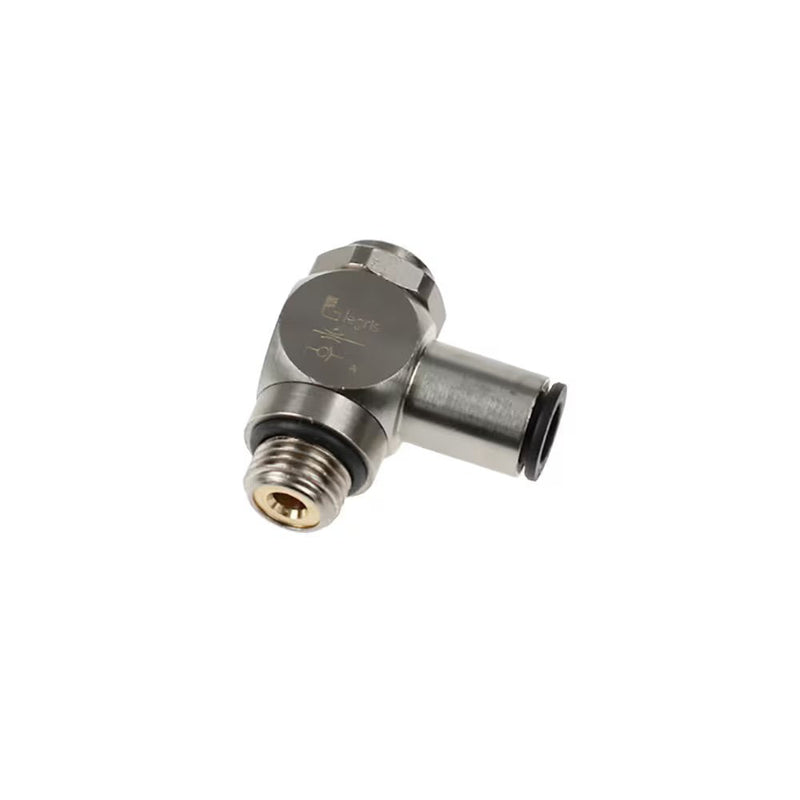

7130 08 13 by Parker | Legris Flow Regulator | 8 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

7130 08 13 by Parker | Legris Flow Regulator | 8mm Tube Size x 1/4" Male BSPP Thread | 17mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $45.52 Save $45.52
$385.52
$385.52 - $385.52
$385.52
$340.00
$340.00 - $340.00
$340.00

by Parker Hannifin
Flow Control Regulators:7130 Flow Regulator, Exhaust, Male BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7130 08 13 Parker | 10 |
Series: 7130 Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C E F H J L Kg
7130 04 19 4 mm M5x0.8 4 mm 8 mm 17 mm 9 mm 19 mm .010 Kg
7130 04 10 4 mm 1/8" 5 mm 13 mm 29 mm 15 mm 20 mm .037 Kg
7130 06 19 6 mm M5x0.8 4 mm 8 mm 17 mm 9 mm 24 mm .013 Kg
7130 06 10 6 mm 1/8" 5 mm 13 mm 29 mm 15 mm 22 mm .038 Kg
7130 06 13 6 mm 1/4" 8 mm 17 mm 31 mm 18 mm 24 mm .062 Kg
7130 08 10 8 mm 1/8" 5 mm 13 mm 29 mm 15 mm 25 mm .042 Kg
7130 08 13 8 mm 1/4" 8 mm 17 mm 31 mm 18 mm 28 mm .066 Kg
7130 08 17 8 mm 3/8" 7 mm 20 mm 40 mm 21.5 mm 29 mm .109 Kg
7130 10 13 10 mm 1/4" 8 mm 17 mm 31 mm 18 mm 30 mm .075 Kg
7130 10 17 10 mm 3/8" 7 mm 20 mm 40 mm 21.5 mm 32 mm .119 Kg
7130 10 21 10 mm 1/2" 8 mm 23 mm 53 mm 28 mm 34 mm .227 Kg
7130 12 21 12 mm 1/2" 8 mm 23 mm 53 mm 28 mm 38 mm .306 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
