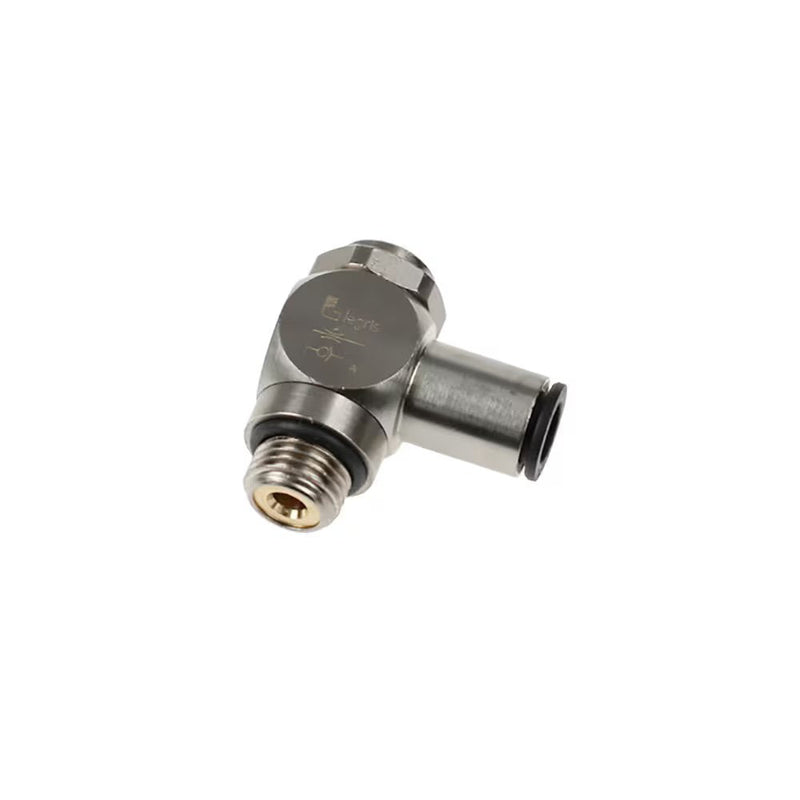

7130 10 13 by Parker | Legris Flow Regulator | 10 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

7130 10 13 by Parker | Legris Flow Regulator | 10 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

Save $16.35 Save $16.35
$224.82
$224.82 - $224.82
$224.82
$208.47
$208.47 - $208.47
$208.47

by Parker Hannifin
Flow Control Regulators:7130 Flow Regulator, Exhaust, Male BSPP and Metric Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 7130 10 13 Parker | 5 |
Series: 7130 Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C E F H J L Kg
7130 04 19 4 mm M5x0.8 4 mm 8 mm 17 mm 9 mm 19 mm .010 Kg
7130 04 10 4 mm 1/8" 5 mm 13 mm 29 mm 15 mm 20 mm .037 Kg
7130 06 19 6 mm M5x0.8 4 mm 8 mm 17 mm 9 mm 24 mm .013 Kg
7130 06 10 6 mm 1/8" 5 mm 13 mm 29 mm 15 mm 22 mm .038 Kg
7130 06 13 6 mm 1/4" 8 mm 17 mm 31 mm 18 mm 24 mm .062 Kg
7130 08 10 8 mm 1/8" 5 mm 13 mm 29 mm 15 mm 25 mm .042 Kg
7130 08 13 8 mm 1/4" 8 mm 17 mm 31 mm 18 mm 28 mm .066 Kg
7130 08 17 8 mm 3/8" 7 mm 20 mm 40 mm 21.5 mm 29 mm .109 Kg
7130 10 13 10 mm 1/4" 8 mm 17 mm 31 mm 18 mm 30 mm .075 Kg
7130 10 17 10 mm 3/8" 7 mm 20 mm 40 mm 21.5 mm 32 mm .119 Kg
7130 10 21 10 mm 1/2" 8 mm 23 mm 53 mm 28 mm 34 mm .227 Kg
7130 12 21 12 mm 1/2" 8 mm 23 mm 53 mm 28 mm 38 mm .306 Kg
