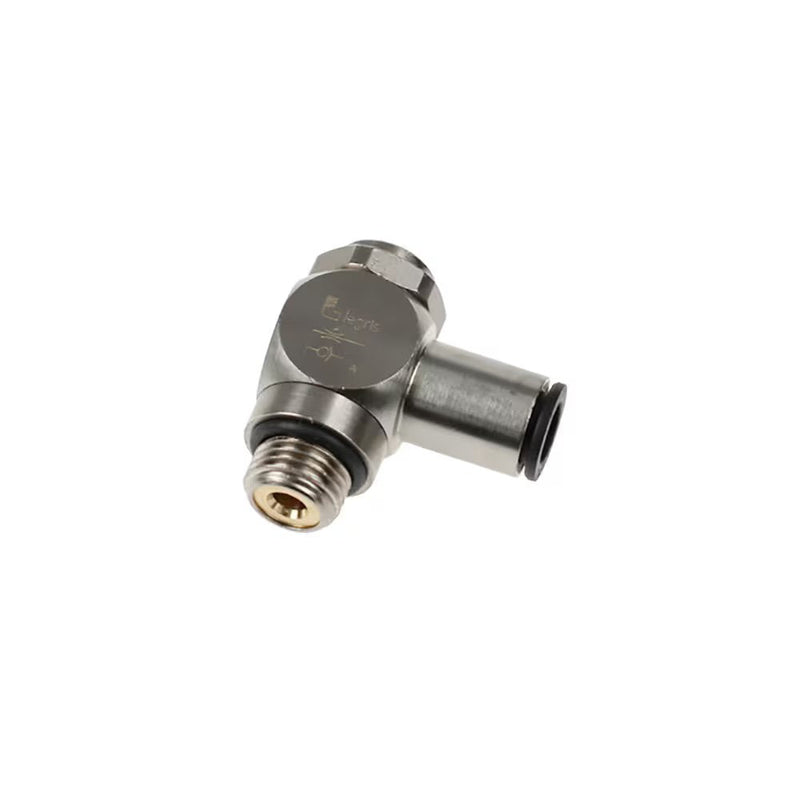

7130 10 17 by Parker | Legris Flow Regulator | 10mm Tube Size x 3/8" Male BSPP Thread | 20mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

Save $211.33

$528.33

$528.33 - $528.33

$528.33

$317.00

$317.00 - $317.00

$317.00

by Parker Hannifin
Flow Control Regulators:7130 Flow Regulator, Exhaust, Male BSPP and Metric Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 7130 10 17 Parker \| 5 \|
Series:	7130 Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	E	F	H	J	L	Kg
7130 04 19	4 mm	M5x0.8	4 mm	8 mm	17 mm	9 mm	19 mm	.010 Kg
7130 04 10	4 mm	1/8"	5 mm	13 mm	29 mm	15 mm	20 mm	.037 Kg
7130 06 19	6 mm	M5x0.8	4 mm	8 mm	17 mm	9 mm	24 mm	.013 Kg
7130 06 10	6 mm	1/8"	5 mm	13 mm	29 mm	15 mm	22 mm	.038 Kg
7130 06 13	6 mm	1/4"	8 mm	17 mm	31 mm	18 mm	24 mm	.062 Kg
7130 08 10	8 mm	1/8"	5 mm	13 mm	29 mm	15 mm	25 mm	.042 Kg
7130 08 13	8 mm	1/4"	8 mm	17 mm	31 mm	18 mm	28 mm	.066 Kg
7130 08 17	8 mm	3/8"	7 mm	20 mm	40 mm	21.5 mm	29 mm	.109 Kg
7130 10 13	10 mm	1/4"	8 mm	17 mm	31 mm	18 mm	30 mm	.075 Kg
7130 10 17	10 mm	3/8"	7 mm	20 mm	40 mm	21.5 mm	32 mm	.119 Kg
7130 10 21	10 mm	1/2"	8 mm	23 mm	53 mm	28 mm	34 mm	.227 Kg
7130 12 21	12 mm	1/2"	8 mm	23 mm	53 mm	28 mm	38 mm	.306 Kg
