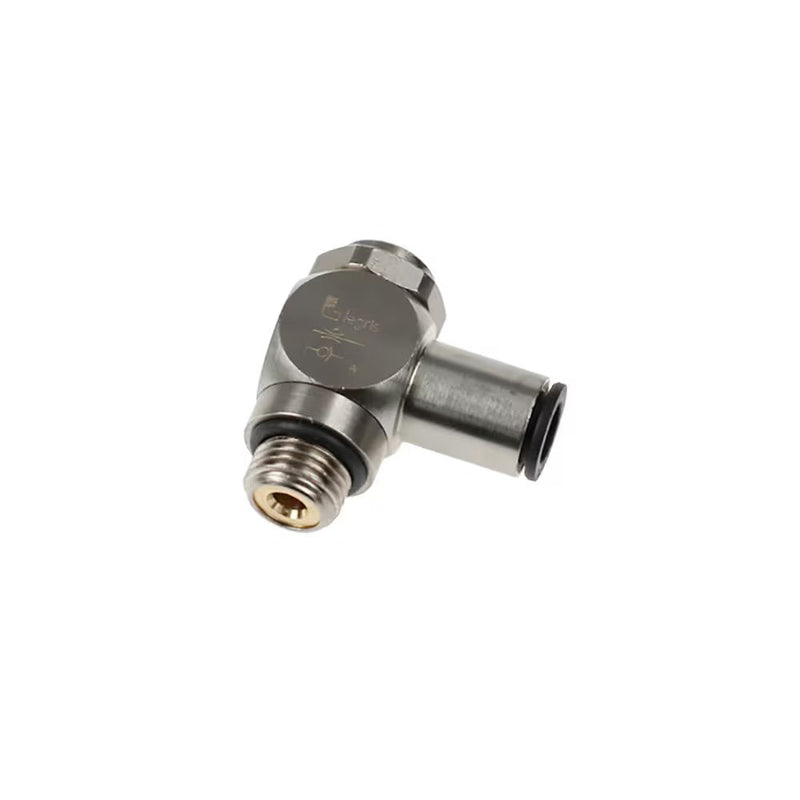

7130 10 21 by Parker | Legris Flow Regulator | 10 mm Tube Size x 1/2" Male BSPP Thread | 23 mm Hex | 90° Elbow | Nickel-Plated Brass

Save $6.04

$83.04

$83.04 - $83.04

$83.04

$77.00

$77.00 - $77.00

$77.00

by Parker Hannifin
Flow Control Regulators:7130 Flow Regulator, Exhaust, Male BSPP and Metric Thread

Quantity

Specifications for Variant SKU: 7130 10 21 Parker
Series:	7130 Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	E	F	H	J	L	Kg
7130 04 19	4 mm	M5x0.8	4 mm	8 mm	17 mm	9 mm	19 mm	.010 Kg
7130 04 10	4 mm	1/8"	5 mm	13 mm	29 mm	15 mm	20 mm	.037 Kg
7130 06 19	6 mm	M5x0.8	4 mm	8 mm	17 mm	9 mm	24 mm	.013 Kg
7130 06 10	6 mm	1/8"	5 mm	13 mm	29 mm	15 mm	22 mm	.038 Kg
7130 06 13	6 mm	1/4"	8 mm	17 mm	31 mm	18 mm	24 mm	.062 Kg
7130 08 10	8 mm	1/8"	5 mm	13 mm	29 mm	15 mm	25 mm	.042 Kg
7130 08 13	8 mm	1/4"	8 mm	17 mm	31 mm	18 mm	28 mm	.066 Kg
7130 08 17	8 mm	3/8"	7 mm	20 mm	40 mm	21.5 mm	29 mm	.109 Kg
7130 10 13	10 mm	1/4"	8 mm	17 mm	31 mm	18 mm	30 mm	.075 Kg
7130 10 17	10 mm	3/8"	7 mm	20 mm	40 mm	21.5 mm	32 mm	.119 Kg
7130 10 21	10 mm	1/2"	8 mm	23 mm	53 mm	28 mm	34 mm	.227 Kg
7130 12 21	12 mm	1/2"	8 mm	23 mm	53 mm	28 mm	38 mm	.306 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
