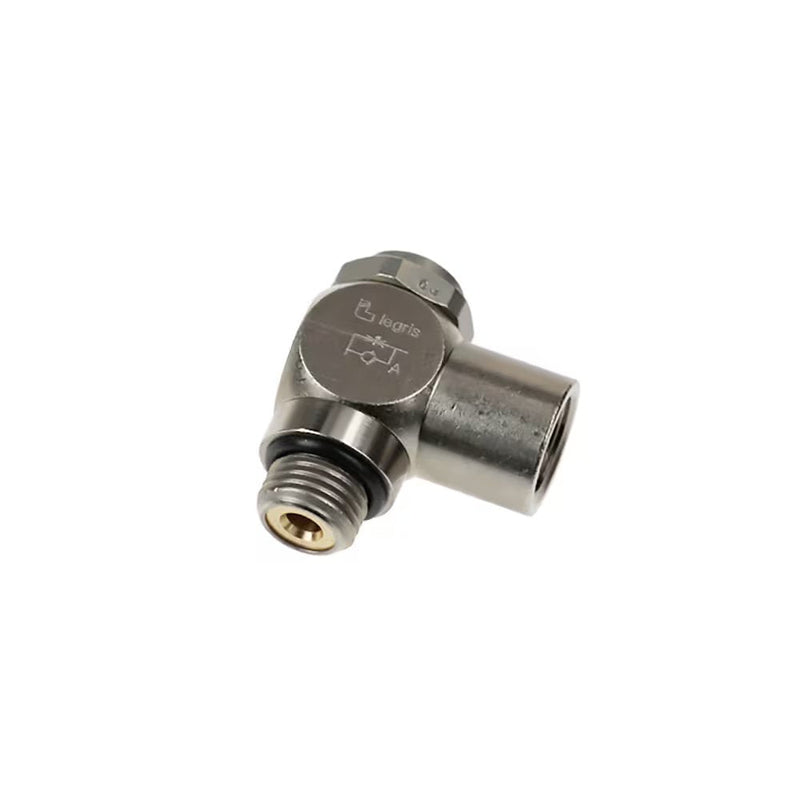

7140 10 10 by Parker | Legris Flow Regulator | 1/8" Male/Female BSPP Thread | 13 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

7140 10 10 by Parker | Legris Flow Regulator | 1/8" Male/Female BSPP Thread | 13mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $220.27 Save $220.27
$550.67
$550.67 - $550.67
$550.67
$330.40
$330.40 - $330.40
$330.40

by Parker Hannifin
Flow Control Regulators:7140 Flow Regulator Exhaust, Male/Female BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7140 10 10 Parker | 10 |
Series: 7140 Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:

    Productivity:

  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed

    • Accuracy:

  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow

    • Ergonomics:

  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number C E E1 F H J L Kg
7140 19 19 M5x0.8 4 mm 4 mm 8 mm 21 mm 9 mm 11 mm .009 Kg
7140 10 10 1/8" 5 mm 8 mm 13 mm 32 mm 15 mm 17 mm .039 Kg
7140 13 13 1/4" 8 mm 12 mm 17 mm 39 mm 18 mm 24 mm .073 Kg
7140 17 17 3/8" 7 mm 12 mm 20 mm 47 mm 21.5 mm 27 mm .124 Kg
7140 21 21 1/2" 8 mm 15 mm 23 mm 61 mm 28 mm 31 mm .238 Kg
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
