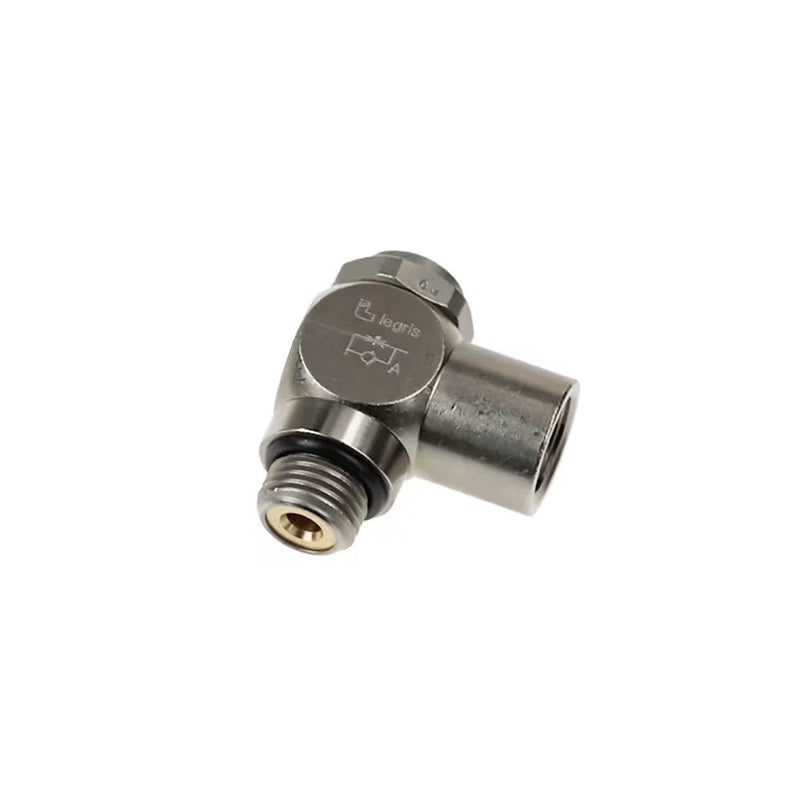

7140 21 21 by Parker | Legris Flow Regulator | 1/2" Male/Female BSPP Thread | 23 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

7140 21 21 by Parker | Legris Flow Regulator | 1/2" Male/Female BSPP Thread | 23mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

Save $253.91 Save $253.91
$634.78
$634.78 - $634.78
$634.78
$380.87
$380.87 - $380.87
$380.87

by Parker Hannifin
Flow Control Regulators:7140 Flow Regulator Exhaust, Male/Female BSPP and Metric Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 7140 21 21 Parker | 5 |
Series: 7140 Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:

    Productivity:

  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed

    • Accuracy:

  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow

    • Ergonomics:

  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number C E E1 F H J L Kg
7140 19 19 M5x0.8 4 mm 4 mm 8 mm 21 mm 9 mm 11 mm .009 Kg
7140 10 10 1/8" 5 mm 8 mm 13 mm 32 mm 15 mm 17 mm .039 Kg
7140 13 13 1/4" 8 mm 12 mm 17 mm 39 mm 18 mm 24 mm .073 Kg
7140 17 17 3/8" 7 mm 12 mm 20 mm 47 mm 21.5 mm 27 mm .124 Kg
7140 21 21 1/2" 8 mm 15 mm 23 mm 61 mm 28 mm 31 mm .238 Kg
