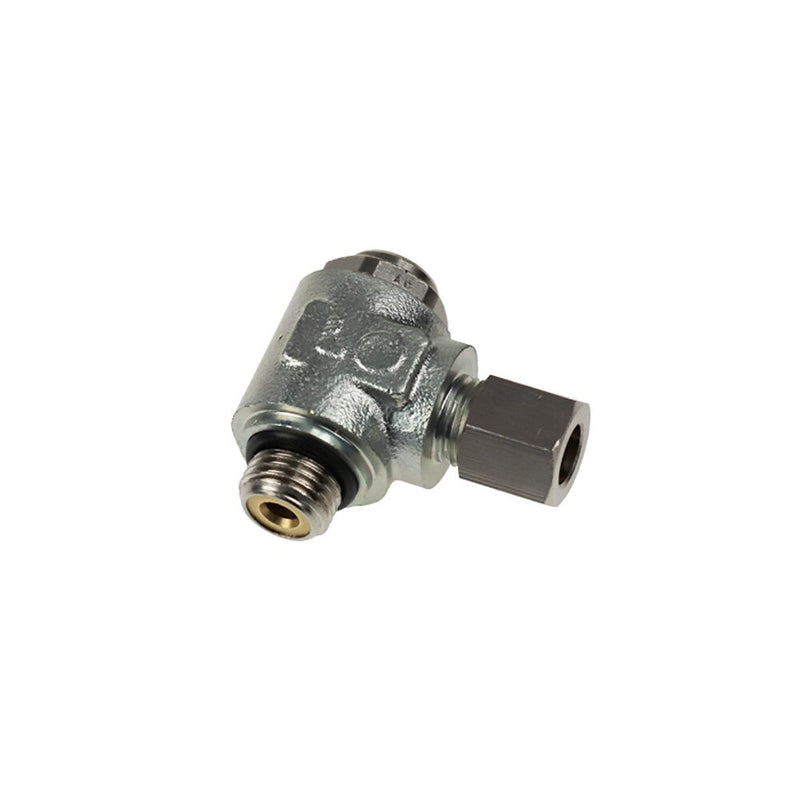

7160 08 10 by Parker | Legris Flow Regulator with Brass Compression Fitting | 8 mm Tube Size x 1/8" Male BSPP Thread | 13 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

Save $15.08

$207.15

$207.15 - $207.15

$207.15

$192.07

$192.07 - $192.07

$192.07

by Parker Hannifin
Flow Control Regulators:7160 Flow Regulator with Brass Compression Fitting, Exhaust, Male BSPP Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 7160 08 10 Parker \| 5 \|
Series:	7160 Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	F	F1	H	J	L	L1	Kg
7160 04 10	4 mm	1/8"	13 mm	10 mm	26 mm	17 mm	25.5 mm	14.5 mm	.051 Kg
7160 06 10	6 mm	1/4"	13 mm	13 mm	26 mm	17 mm	25.5 mm	14.5 mm	.054 Kg
7160 08 10	8 mm	1/8"	13 mm	14 mm	26 mm	17 mm	29.5 mm	15.5 mm	.055 Kg
7160 08 13	8 mm	1/4"	17 mm	14 mm	31.5 mm	22 mm	31 mm	17 mm	.101 Kg
7160 10 13	10 mm	1/4"	17 mm	19 mm	31.5 mm	22 mm	35 mm	19 mm	.117 Kg
7160 10 17	10 mm	3/8"	20 mm	19 mm	44.5 mm	22 mm	37.5 mm	19 mm	.190 Kg
7160 10 21	10 mm	1/2"	23 mm	19 mm	50 mm	27 mm	37.5 mm	19 mm	.204 Kg
7160 12 21	12 mm	1/2"	23 mm	22 mm	50 mm	27 mm	38 mm	21.5 mm	.212 Kg
