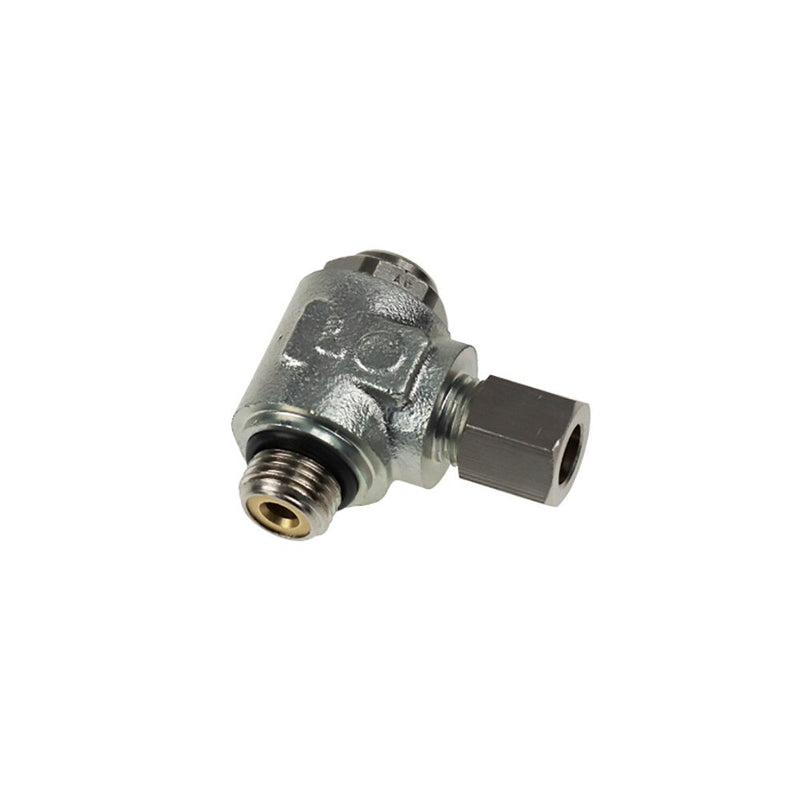

7160 10 13 by Parker | Legris Flow Regulator with Brass Compression Fitting | 10 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex | 90° Elbow | Nickel-Plated Brass

7160 10 13 by Parker | Legris Flow Regulator with Brass Compression Fitting | 10 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex | 90° Elbow | Nickel-Plated Brass

Save $4.21 Save $4.21
$57.88
$57.88 - $57.88
$57.88
$53.67
$53.67 - $53.67
$53.67

by Parker Hannifin
Flow Control Regulators:7160 Flow Regulator with Brass Compression Fitting, Exhaust, Male BSPP Thread
Specifications for Variant SKU: 7160 10 13 Parker
Series: 7160 Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C F F1 H J L L1 Kg
7160 04 10 4 mm 1/8" 13 mm 10 mm 26 mm 17 mm 25.5 mm 14.5 mm .051 Kg
7160 06 10 6 mm 1/4" 13 mm 13 mm 26 mm 17 mm 25.5 mm 14.5 mm .054 Kg
7160 08 10 8 mm 1/8" 13 mm 14 mm 26 mm 17 mm 29.5 mm 15.5 mm .055 Kg
7160 08 13 8 mm 1/4" 17 mm 14 mm 31.5 mm 22 mm 31 mm 17 mm .101 Kg
7160 10 13 10 mm 1/4" 17 mm 19 mm 31.5 mm 22 mm 35 mm 19 mm .117 Kg
7160 10 17 10 mm 3/8" 20 mm 19 mm 44.5 mm 22 mm 37.5 mm 19 mm .190 Kg
7160 10 21 10 mm 1/2" 23 mm 19 mm 50 mm 27 mm 37.5 mm 19 mm .204 Kg
7160 12 21 12 mm 1/2" 23 mm 22 mm 50 mm 27 mm 38 mm 21.5 mm .212 Kg
