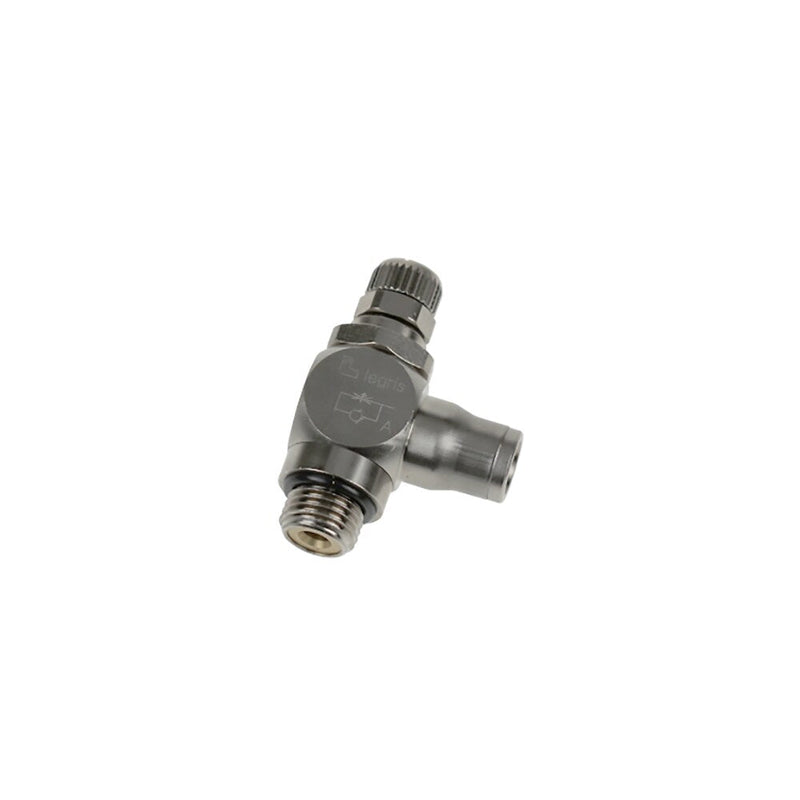

7180 04 19 by Parker | Legris Miniature Flow Regulator Exhaust | 4 mm Tube Size x M5x0.8 Male M5 Metric Thread | 8 mm Hex | 33 mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $24.49

$336.22

$336.22 - $336.22

$336.22

$311.73

$311.73 - $311.73

$311.73

by Parker Hannifin
Flow Control Regulators:7180 Miniature Flow Regulator Exhaust, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 7180 04 19 Parker \| 10 \|
Series:	7180 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	E	F	H (max)	H (min)	J	L	Kg
7180 04 19	4 mm	M5x0.8	4 mm	8 mm	29 mm	24 mm	10 mm	19 mm	.012 Kg
7180 06 19	6 mm	M5x0.8	4 mm	8 mm	29 mm	24 mm	10 mm	24 mm	.015 Kg
7180 06 10	6 mm	1/8"	5 mm	13 mm	44 mm	39 mm	15 mm	22 mm	.043 Kg
7180 08 10	8 mm	1/8"	5 mm	13 mm	44 mm	39 mm	15 mm	26 mm	.049 Kg
