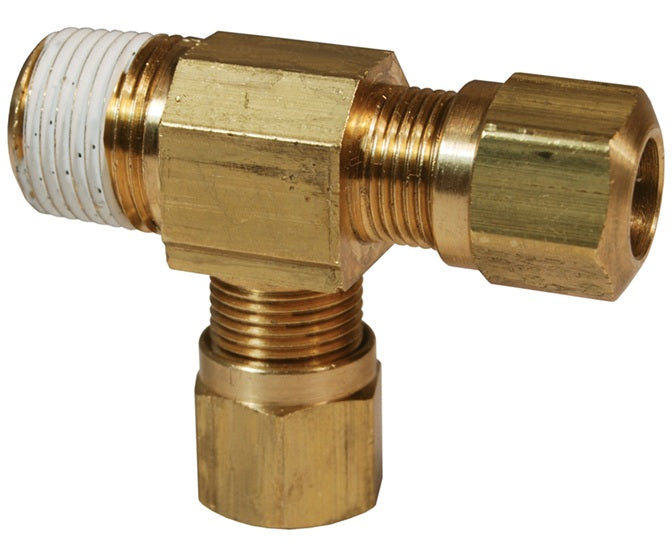

71NAB108VS by Dixon Valve | Air Brake Fitting | Male Run Tee | 1/2" Male NPT x 5/8" Tube Size x 5/8" Tube Size | Brass

71NAB108VS by Dixon Valve | Air Brake Fitting | Male Run Tee | 1/2" Male NPT x 5/8" Tube Size x 5/8" Tube Size | Brass

Save $18.09 Save $18.09
$45.22
$45.22 - $45.22
$45.22
$27.13
$27.13 - $27.13
$27.13

Dixon Valve & Coupling
Air Brake Fitting | Male Run Tee | Tube End x Tube End x Tube End

Ref. SAE 100424 BA

Designed for use in air brake systems or cab controls.

Compatible tubing: SAE J844 type A and B.
Specifications for Variant SKU: 71NAB108VS Dixon
Shape (Orientation): Tee
Ends Configuration: 5/8in Tube Compression, 1/2in Male NPT
Material(s): Brass
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
  • Thread sealant may be white or burnt orange.
Construction:
  • Machined from CA260, CA345 or CA377 brass.
Specifications:
  • Temperature range: -40°F to 200°F (-40°C to 93°C).
Approvals:
  • Ref. SAE 100424 BA
  • Meets DOT FMVSS 571.106 and SAE J246.
Assembly Instructions:
  • 1. Cut tubing squarely - maximum of 15° angle allowable.
  • 2. Check that port or mating part is clean and free of debris.
  • 3. Insert tubing into fittings until it bottoms on seat.
  • 4. Tighten nut with wrench until one thread remains visible on the fittings body (this will allow for a number of remakes); or, the nut should be screwed down finger tight, then wrench-tightened as indicated in the chart below.
Tube Size Turns required to seal from hand tight
3/16" 2-1/2
1/4" 3
3/8" & 1/2" 4
5/8" & 3/4" 3-1/2
Part Number Tube Size Pipe Size Straight Thread
71NAB42VS 1/4" 1/8" 7/16"-24
71NAB44VS 1/4" 1/4" 7/16"-24
71NAB64VS 3/8" 1/4" 17/32"-24
71NAB66VS 3/8" 3/8" 17/32"-24
71NAB108VS 5/8" 1/2" 13/16"-18
