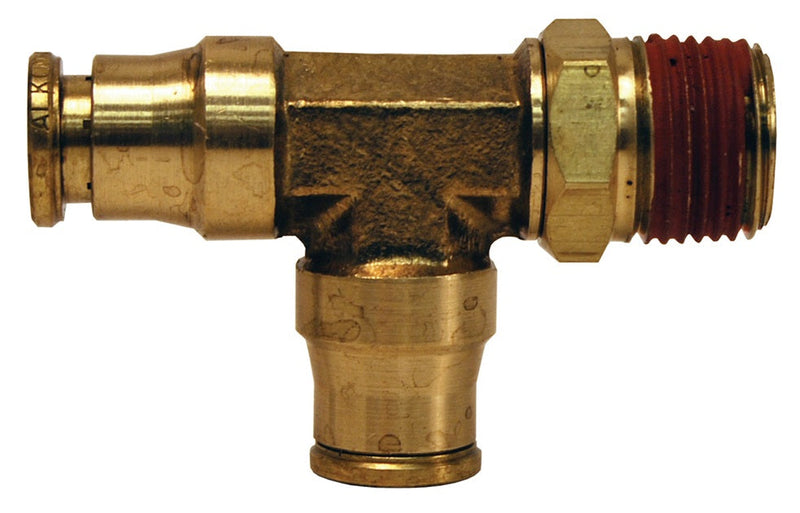

71S8X8 by Dixon Valve | Push-In Fitting | Male Swivel Run Tee | 1/4" Tube OD x 1/4" Male NPTF x 1/4" Tube OD | Forged Brass

71S8X8 by Dixon Valve | Push-In Fitting | Male Swivel Run Tee | 1/4" Tube OD x 1/4" Male NPTF x 1/4" Tube OD | Forged Brass

Save $1.18 Save $1.18
$10.63
$10.63 - $10.63
$10.63
$9.45
$9.45 - $9.45
$9.45

Dixon Valve & Coupling
Push-In Fitting | Male Swivel Run Tee | Tube End x Male NPTF x Tube End
Specifications for Variant SKU: 71S8x8 Dixon
Shape (Orientation): Tee
Ends Configuration: 1/4in Push-to-Connect, 1/4in Male NPTF
Material(s): Brass
Use:
  • Suitable for vacuum service.
  • Working pressure: suitable for use up to the maximum working pressure of the plastic tubing used.
Features:
  • Positive seal: no leaks, after tubing is inserted, seal is made.
  • Secure tube retention: pulling on tubing only serves to tighten the connection.
  • Full flow design provides up to 60% more flow than conventional fittings with internal tube supports.
  • Supplied with gasket.
Construction:
  • Forged Brass
Specifications:
  • Temperature range: -10°F to 200°F (-23°C to 93°C)
Safety Notes:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
Installation:
  • Saves up to 75% of assembly time versus the standard compression fittings.
  • Quick connect: simply push tubing in, no tools required.
  • Quick disconnect: hold two fingers on insert and pull tubing out, no tools required.
  • Reusable: connect and disconnect numerous times.
Part Number Tube O.D. Male Thread (Run)
71S4X4 1/8" 1/8" Male NPTF
71S5X10 5/32" 10-32 Male UNF Straight Thread
(Supplied with Gasket)
71S5X4 5/32" 1/8" Male NPTF
71S8X4 1/4" 1/8" Male NPTF
71S8X8 1/4" 1/4" Male NPTF
71S12X8 3/8" 1/4" Male NPTF
71S12X12 3/8" 3/8" Male NPTF
71S16X12 1/2" 3/8" Male NPTF
71S16X16 1/2" 1/2" Male NPTF
