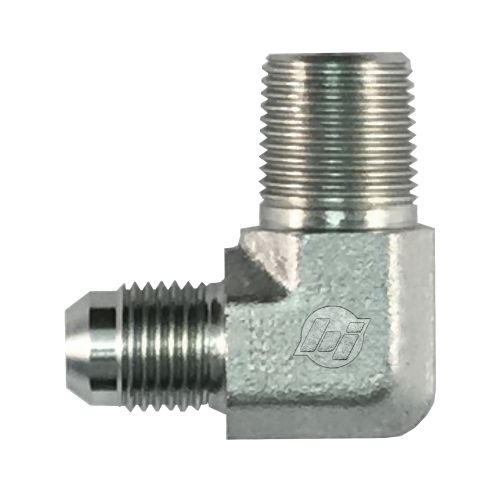

7200-06-04-FG by Brennan Inc. | -06 Male JIC x -04 Male BSPT | 90° Elbow | Forged Steel

7200-06-04-FG by Brennan Inc. | -06 Male JIC x -04 Male BSPT | 90° Elbow | Forged Steel

Save $0.83 Save $0.83
$7.47
$7.47 - $7.47
$7.47
$6.64
$6.64 - $6.64
$6.64

Brennan Inc.
Conversion Adapters: 7200 - Male JIC x Male BSPT 90° Elbow
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 7200-06-04-FG Brennan
Shape (Orientation): 90 Degree
Material(s): Steel
Part Number Material B1JIC 37° A2BSPT B1Drill A2Drill MLength LLength YFlats
7200-04-02-FG Forged Steel 7/16-20" 1/8-28" 4.4mm 4.8mm 22.50mm 20.00mm 11.10mm
7200-04-04-FG Forged Steel 7/16-20" 1/4-19" 4.40mm 7.10mm 26.70mm 27.70mm 14.30mm
7200-06-04-FG Forged Steel 9/16-18" 1/4-19" 7.50mm 7.10mm 26.90mm 27.70mm 14.30mm
7200-06-06-FG Forged Steel 9/16-18" 3/8-19" 7.50mm 10.30mm 29.00mm 31.00mm 19.00mm
7200-06-08-FG Forged Steel 9/16-18" 1/2-14" 7.10mm 13.10mm 31.00mm 37.30mm 22.00mm
7200-08-06-FG Forged Steel 3/4-16" 3/8-19" 9.90mm 10.30mm 32.00mm 31.00mm 19.00mm
7200-08-08-FG Forged Steel 3/4-16" 1/2-14" 9.90mm 13.50mm 34.00mm 37.50mm 22.00mm
7200-10-08-FG Forged Steel 7/8-14" 1/2-14" 12.30mm 13.00mm 36.80mm 37.30mm 22.20mm
7200-12-08-FG Forged Steel 1-1/16-12" 1/2-14" 15.50mm 12.00mm 44.20mm 40.00mm 27.00mm
7200-12-12-FG Forged Steel 1-1/16-12" 3/4-14" 15.50mm 18.30mm 42.20mm 40.40mm 27.00mm
7200-16-16-FG Forged Steel 1-5/16-12" 1-11" 21.40mm 23.80mm 46.00mm 50.00mm 33.30mm
7200-20-20-FG Forged Steel 1-5/8-12" 1-1/4-11" 27.50mm 31.70mm 52.50mm 60.50mm 41.00mm
7200-24-24-FG Forged Steel 1-7/8-12" 1-1/2-11" 33.30mm 38.10mm 59.20mm 67.10mm 47.60mm
