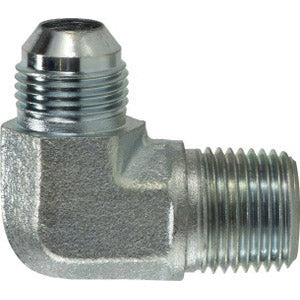

720052 by Midland | Hydraulic JIC to BSPT | 5/16" Male JIC 37° Flare x 1/8" Male BSPT | 90° Elbow | Steel

Name: 720052 by Midland | Hydraulic JIC to BSPT | 5/16" Male JIC 37° Flare x 1/8" Male BSPT | 90° Elbow | Steel
Brand: Midland Industries
SKU: 720052 Midland
Price: 5.2 USD
Availability: InStock

Save $0.65

$5.85

$5.85 - $5.85

$5.85

$5.20

$5.20 - $5.20

$5.20

Midland Industries
Hydraulic Adapters: JIC to BSPT 90° Elbow Connector - Steel

Inventory @ Manufacturers Warehouse: 213 Units

Quantity

Specifications for Variant SKU: 720052 Midland
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Male JIC, 1/8in Male BSPT
Material(s):	Steel

Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
3501	315


Part Number	Male JIC 37° Flare (1)	Male JIC 37° Flare Thread (1)	Male BSPT (2)	Male BSPT Thread (2)
720042 (7200-4-2)	1/4"	7/16-20	1/8"	1/8-28
720044 (7200-4-4)	1/4"	7/16-20	1/4"	1/4-19
720052	5/16"	1/2-20	1/8"	1/8-28
720054	5/16"	1/2-20	1/4"	1/4-19
720064 (7200-6-4)	3/8"	9/16-18	1/4"	1/4-19
720066 (7200-6-6)	3/8"	9/16-18	3/8"	3/8-19
720068 (7200-6-8)	3/8"	9/16-18	1/2"	1/2-14
720086 (7200-8-6)	1/2"	3/4-16	3/8"	3/8-19
720088 (7200-8-8)	1/2"	3/4-16	1/2"	1/2-14
7200108	5/8"	7/8-14	1/2"	1/2-14
72001212 (7200-12-12)	3/4"	1-1/16-12	3/4"	3/4-14
72001616 (7200-16-16)	1"	1-5/16-12	1"	1-11
72002020	1-1/4"	1-5/8-12	1-1/4"	1-1/4-11
