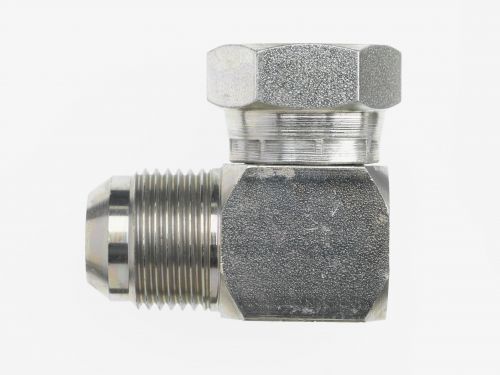

7204-06-06-FG by Brennan Inc. | -06 Male JIC x -06 Female BSPP Swivel | 90° Elbow | Forged Steel

7204-06-06-FG by Brennan Inc. | -06 Male JIC x -06 Female BSPP Swivel | 90° Elbow | Forged Steel

Save $16.02 Save $16.02
$40.05
$40.05 - $40.05
$40.05
$24.03
$24.03 - $24.03
$24.03

Brennan Inc.
Conversion Adapters: 7204 - Male JIC X Female BSPP Swivel 90° Elbow
Specifications for Variant SKU: 7204-06-06-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male JIC, 3/8in Female BSPP
Material(s): Steel
Special Properties: Swivel
Part Number Material B1JIC 37° B2BSPP B1Drill B2Drill MLength LLength CHex YFlats
7204-06-06-FG Forged Steel 9/16-18" 3/8-19" 7.50mm 7.90mm 29.20mm 33.00mm 22.00mm 19.00mm
7204-08-08-FG Forged Steel 3/4-16" 1/2-14" 9.90mm 11.10mm 34.00mm 38.80mm 27.00mm 22.00mm
7204-12-12-FG Forged Steel 1-1/16-12" 3/4-14" 15.50mm 16.70mm 42.00mm 42.30mm 32.00mm 27.00mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
