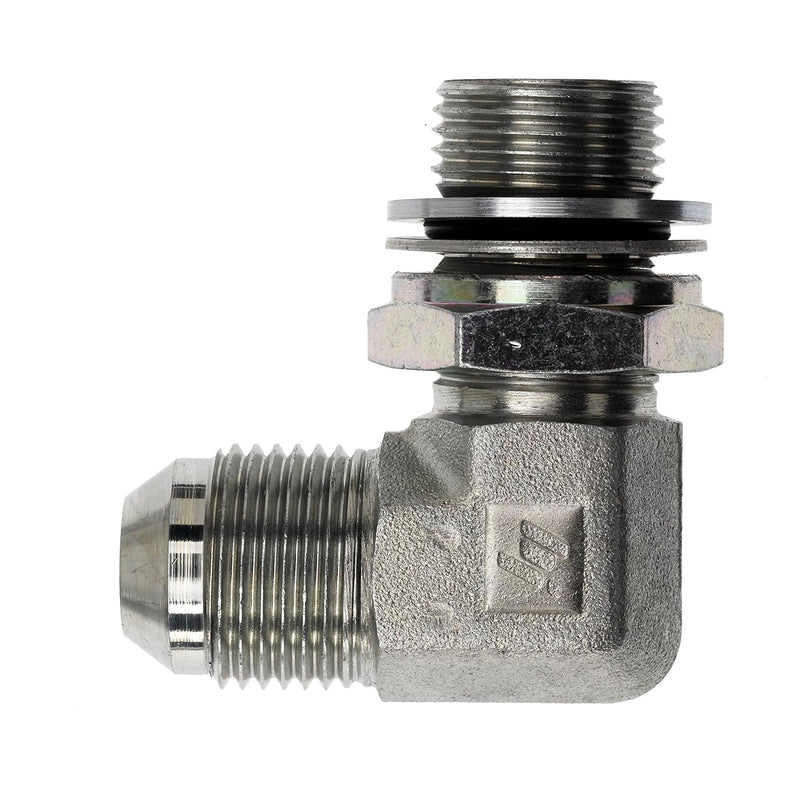

7205-10-18-NWO-FG by Brennan Inc. | -10 Male JIC x 18mm Male Metric Adjustable O-Ring Boss | 90° Elbow | Forged Steel

7205-10-18-NWO-FG by Brennan Inc. | -10 Male JIC x 18mm Male Metric Adjustable O-Ring Boss | 90° Elbow | Forged Steel

$21.88 - $21.88
$21.88
$27.77
$27.77 - $27.77
$27.77

Brennan Inc.
Conversion Adapters: 7205-NWO Male JIC x Male Metric Adjustable O-Ring Boss 90° Elbow
Specifications for Variant SKU: 7205-10-18-NWO-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male JIC, 18mm Male O-Ring Boss
Material(s): Steel
Part Number Material B1JIC 37° B2 B1Drill B2Drill MLength LLength CHex YFlats
7205-04-10-NWO-FG Forged Steel 7/16-20" M10X1 4.40mm 4.50mm 22.60mm 25.40mm 14.00mm 11.00mm
7205-04-12-NWO-FG Forged Steel 7/16-20" M12X1.5 4.37mm 6.00mm 26.70mm 32.50mm 17.00mm 14.00mm
7205-04-14-NWO-FG Forged Steel 7/16-20" M14X1.5 4.37mm 7.50mm 26.70mm 32.50mm 19.00mm 14.00mm
7205-05-12-NWO-FG Forged Steel 1/2-20" M12X1.5 6.00mm 6.00mm 24.10mm 31.50mm 17.00mm 14.00mm
7205-06-14-NWO-FG Forged Steel 9/16-18" M14X1.5 7.50mm 7.50mm 27.00mm 33.50mm 19.00mm 14.00mm
7205-06-16-NWO-FG Forged Steel 9/16-18" M16X1.5 7.54mm 9.00mm 29.20mm 36.40mm 22.00mm 19.00mm
7205-08-16-NWO-FG Forged Steel 3/4-16" M16X1.5 9.93mm 9.00mm 31.80mm 36.40mm 22.00mm 19.00mm
7205-08-18-NWO-FG Forged Steel 3/4-16" M18X1.5 9.90mm 11.00mm 32.00mm 36.80mm 24.00mm 19.00mm
7205-08-22-NWO-FG Forged Steel 3/4-16" M22X1.5 9.90mm 14.00mm 34.00mm 42.50mm 27.00mm 22.00mm
7205-10-18-NWO-FG Forged Steel 7/8-14" M18X1.5 12.29mm 11.00mm 36.80mm 41.00mm 24.00mm 22.00mm
7205-10-20-NWO-FG Forged Steel 7/8-14" M20X1.5 12.30mm 13.00mm 37.00mm 41.50mm 27.00mm 22.00mm
7205-10-22-NWO-FG Forged Steel 7/8-14" M22X1.5 12.30mm 14.00mm 36.80mm 42.50mm 27.00mm 22.00mm
7205-12-22-NWO-FG Forged Steel 1-1/16-12" M22X1.5 15.50mm 14.00mm 42.00mm 45.40mm 27.00mm 27.00mm
7205-12-26-NWO-FG Forged Steel 1-1/16-12" M26X1.5 15.47mm 18.00mm 42.00mm 50.00mm 32.00mm 27.00mm
7205-12-27-NWO-FG Forged Steel 1-1/16-12" M27X2 15.47mm 18.00mm 42.20mm 50.00mm 32.00mm 27.00mm
7205-12-33-NWO-FG Forged Steel 1-1/16-12" M33X2 15.50mm 23.00mm 44.80mm 53.10mm 41.00mm 33.00mm
7205-16-27-NWO-FG Forged Steel 1-5/16-12" M27X2 21.50mm 18.00mm 46.00mm 53.00mm 32.00mm 33.20mm
7205-16-33-NWO-FG Forged Steel 1-5/16-12" M33X2 21.44mm 23.00mm 46.00mm 53.00mm 41.00mm 33.00mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
