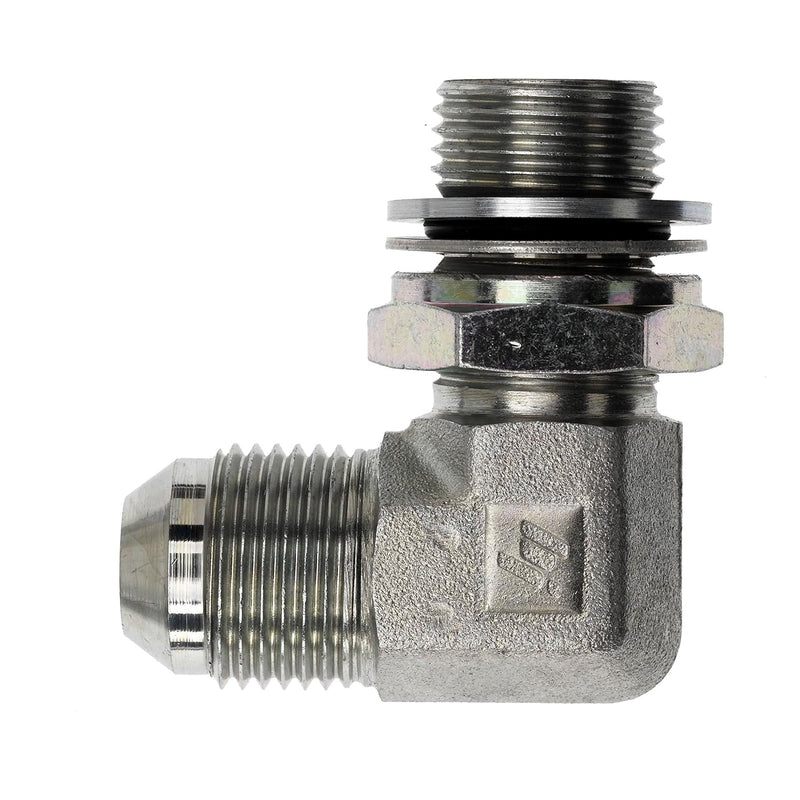

7205-16-33-NWO-FG by Brennan Inc. | -16 Male JIC x 33mm Male Metric Adjustable O-Ring Boss | 90° Elbow | Forged Steel

Save $5.52 Save $5.52
Original price $49.65
Original price $49.65 - Original price $49.65
Original price $49.65
Current price $44.13
$44.13 - $44.13
Current price $44.13

Brennan Inc.
Conversion Adapters: 7205-NWO Male JIC x Male Metric Adjustable O-Ring Boss 90° Elbow

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 7205-16-33-NWO-FG Brennan
Shape (Orientation): 90 Degree
Material(s): Steel
Part Number Material B1JIC 37° B2 B1Drill B2Drill MLength LLength CHex YFlats
7205-04-10-NWO-FG Forged Steel 7/16-20" M10X1 4.40mm 4.50mm 22.60mm 25.40mm 14.00mm 11.00mm
7205-04-12-NWO-FG Forged Steel 7/16-20" M12X1.5 4.37mm 6.00mm 26.70mm 32.50mm 17.00mm 14.00mm
7205-04-14-NWO-FG Forged Steel 7/16-20" M14X1.5 4.37mm 7.50mm 26.70mm 32.50mm 19.00mm 14.00mm
7205-05-12-NWO-FG Forged Steel 1/2-20" M12X1.5 6.00mm 6.00mm 24.10mm 31.50mm 17.00mm 14.00mm
7205-06-14-NWO-FG Forged Steel 9/16-18" M14X1.5 7.50mm 7.50mm 27.00mm 33.50mm 19.00mm 14.00mm
7205-06-16-NWO-FG Forged Steel 9/16-18" M16X1.5 7.54mm 9.00mm 29.20mm 36.40mm 22.00mm 19.00mm
7205-08-16-NWO-FG Forged Steel 3/4-16" M16X1.5 9.93mm 9.00mm 31.80mm 36.40mm 22.00mm 19.00mm
7205-08-18-NWO-FG Forged Steel 3/4-16" M18X1.5 9.90mm 11.00mm 32.00mm 36.80mm 24.00mm 19.00mm
7205-08-22-NWO-FG Forged Steel 3/4-16" M22X1.5 9.90mm 14.00mm 34.00mm 42.50mm 27.00mm 22.00mm
7205-10-18-NWO-FG Forged Steel 7/8-14" M18X1.5 12.29mm 11.00mm 36.80mm 41.00mm 24.00mm 22.00mm
7205-10-20-NWO-FG Forged Steel 7/8-14" M20X1.5 12.30mm 13.00mm 37.00mm 41.50mm 27.00mm 22.00mm
7205-10-22-NWO-FG Forged Steel 7/8-14" M22X1.5 12.30mm 14.00mm 36.80mm 42.50mm 27.00mm 22.00mm
7205-12-22-NWO-FG Forged Steel 1-1/16-12" M22X1.5 15.50mm 14.00mm 42.00mm 45.40mm 27.00mm 27.00mm
7205-12-26-NWO-FG Forged Steel 1-1/16-12" M26X1.5 15.47mm 18.00mm 42.00mm 50.00mm 32.00mm 27.00mm
7205-12-27-NWO-FG Forged Steel 1-1/16-12" M27X2 15.47mm 18.00mm 42.20mm 50.00mm 32.00mm 27.00mm
7205-12-33-NWO-FG Forged Steel 1-1/16-12" M33X2 15.50mm 23.00mm 44.80mm 53.10mm 41.00mm 33.00mm
7205-16-27-NWO-FG Forged Steel 1-5/16-12" M27X2 21.50mm 18.00mm 46.00mm 53.00mm 32.00mm 33.20mm
7205-16-33-NWO-FG Forged Steel 1-5/16-12" M33X2 21.44mm 23.00mm 46.00mm 53.00mm 41.00mm 33.00mm
