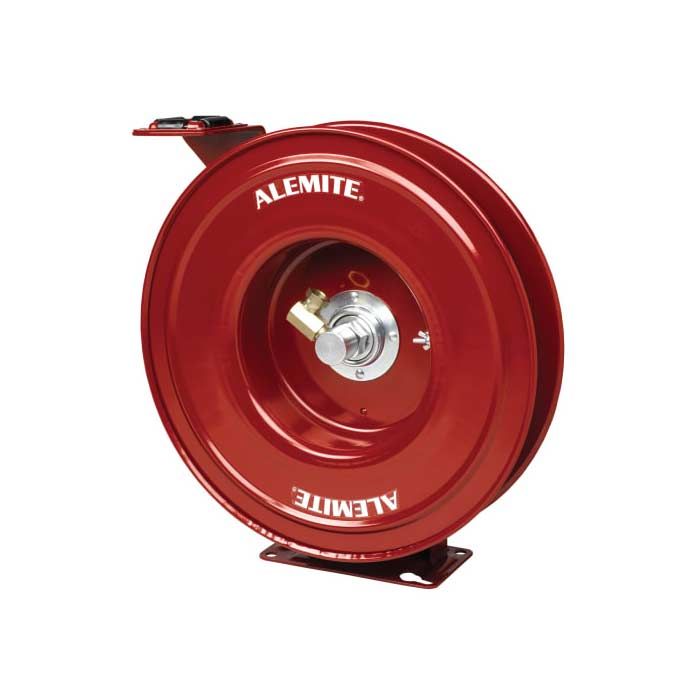

7334-B by Alemite | Heavy Duty Reel | Grease | Bare Reel | Reek Inlet: 1/2" Female NPTF | Reel Outlet: 3/8" Female NPTF Swivel | Max Pressure: 6400 PSI

7334-B by Alemite | Heavy Duty Reel | Grease | Bare Reel | Reek Inlet: 1/2" Female NPTF | Reel Outlet: 3/8" Female NPTF Swivel | Max Pressure: 6400 PSI

Save $422.64 Save $422.64
$947.70
$947.70 - $947.70
$947.70
$525.06
$525.06 - $525.06
$525.06

PRODUCT DESCRIPTION

Alemite Heavy Duty Reels - Grease
Specifications for Variant SKU: 7334-B Alemite
Applications,
  • Alemite Heavy Duty Reels set the industry standard for reliable, rugged performance in tough work environments. Engineered for optimum performance and safety, Alemite Heavy Duty Reels are appropriate for a wide range of demanding applications.
Features,
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
  • Durable - Heavy metal arbor design withstands extreme stress and eliminates breakage associated with non-metal and light weight metal arbors.
  • Adjustable and Versatile - 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
  • Compatibility - Oil, grease, air, water
  • INCLUDED ITEMS,
  • Hose Reel, Hose, Hose Stop, Union & Connecting Hose
Dimensions,



Part Number Bare Reel Max Pressure Delivery Hose
Specification		 Connecting Hose Connecting Hose Inlet Delivery Hose Outlet Weight
8078-B 7334-B 6,000 PSI 1/4" x 50' (317874-50) 317876-2 3/8" NPTF(m) 1/4" NPTF(f) 59 Lb.
8078-T 7334-B 6,400 PSI 3/8" x 50' (317870-50) 317876-2 3/8" NPTF(m) 1/4" NPTF(f) 63 Lb.
7334-B 7334-B 6,400 PSI NA NA NA NA 50 Lb.
