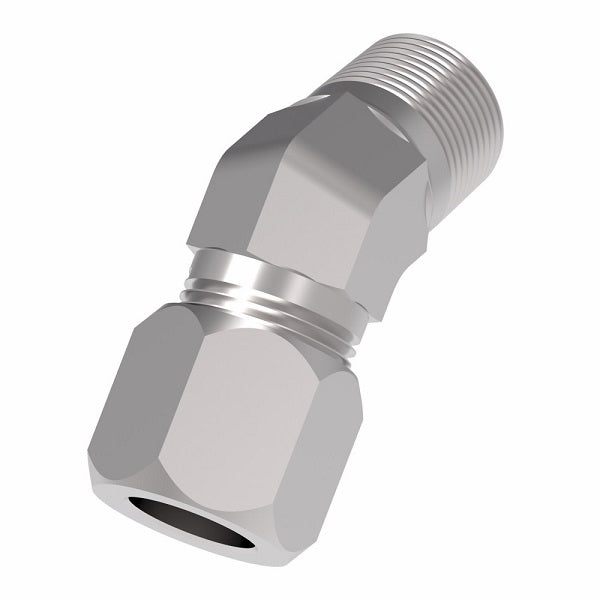

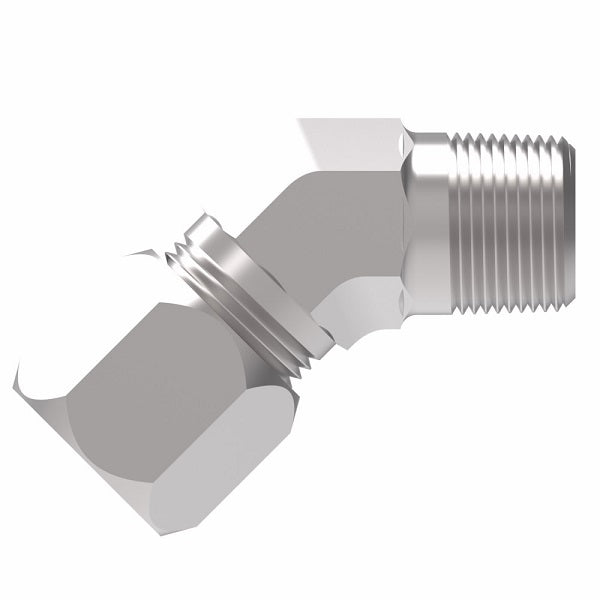

7355X8 Ermeto by Danfoss | 7000 Series | Male 45° Elbow Connector | 3/8" Male NPTF x 1/2" Tube OD | Steel
7355X8 Ermeto by Danfoss | 7000 Series | Male 45° Elbow Connector | 3/8" Male NPTF x 1/2" Tube OD | Steel
7355X8 Ermeto by Danfoss | 7000 Series | Male 45° Elbow Connector | 3/8" Male NPTF x 1/2" Tube OD | Steel
7355X8 Ermeto by Danfoss | 7000 Series | Male 45° Elbow Connector | 3/8" Male NPTF x 1/2" Tube OD | Steel

7355X8 Ermeto by Danfoss | 7000 Series | Male 45° Elbow Connector | 3/8" Male NPTF x 1/2" Tube OD | Steel

$20.04 - $20.04
$20.04
$20.04 - $20.04
$20.04

Ermeto by Danfoss
Male Connector Adapter
Male NPTF x Tube OD
45° Elbow

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Specifications for Variant SKU: 7355X8 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Male NPTF, 1/2in Tube Compression
Material(s): Steel
Specifications:
  • Ref. SAE No. 080302
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Main Pipe Thread D D1 M N Across
Flats
7355X4X4 B7355X4X4 1/4" 1/4" 0.203" 0.281" 0.83" 0.86" 9/16"
7355X6 B7355X6 3/8" 1/4" 0.281" 0.281" 0.83" 0.86" 9/16"
7355X8 B7355X8 1/2" 3/8" 0.422" 0.406" 0.98" 0.95" 3/4"
7355X10 B7355X10 5/8" 1/2" 0.500" 0.531" 1.08" 1.17" 7/8"
7355X12 B7355X12 3/4" 3/4" 0.656" 0.719" 1.27" 1.20" 1-1/16"
7355X16 B7355X16 1" 1" 0.875" 0.938" 1.36" 1.48" 1-5/16"
