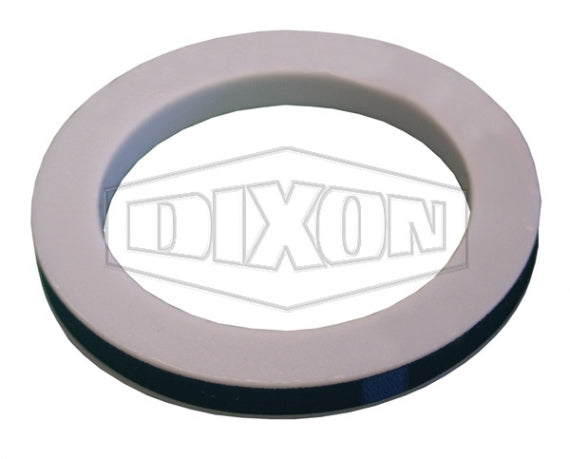

75-G-TF by Dixon Valve | Cam & Groove Envelope Gasket | 3/4" Size | PTFE (TFE) with Nitrile Rubber Filler

75-G-TF by Dixon Valve | Cam & Groove Envelope Gasket | 3/4" Size | PTFE (TFE) with Nitrile Rubber Filler

Save $3.85 Save $3.85
$9.62
$9.62 - $9.62
$9.62
$5.77
$5.77 - $5.77
$5.77

Dixon Valve
Cam & Groove Envelope Gasket
Specifications for Variant SKU: 75-G-TF Dixon
Seal Material(s): PTFE & Nitrile
Safety Notes:
  • Maximum operating temperatures for specific chemicals may be lower; contact Dixon® for specific recommendations.
  • The torque (force) required to close the handles on a pair of cam & groove fittings will vary according to the gasket chosen. Due to the nature of the PTFE material, the various PTFE gasket designs will require the most torque, increasing as you go from envelope to encapsulated, and finally, accordion.
Cam & Groove Envelope Gasket Chart

Size PTFE (TFE) with
Nitrile Rubber Filler
Part Number		 PTFE (TFE) with
FKM Filler
Part Number		 PTFE (TFE) with
White Nitrile Rubber Filler
Part Number		 PTFE (TFE) with
Ethylene Propylene Filler
Part Number
Color: White / Black
Color Code: 1 Blue Stripe		 Color: White / Black
Color Code: 1 Yellow Stripe		 Color: White / White
Color Code: 1 Blue Stripe
Made of FDA Approved Materials		 Color: White / Black
Color Code: 1 White Stripe
1/2" 50-G-TF 50-G-TF-VI - -
3/4" 75-G-TF 75-G-TF-VI - -
1" 100-G-TF 100GTFVI - -
1-1/4" 125-G-TF 125GTFVI - -
1-1/2" 150-G-TF 150GTFVI - 150GTFEP
2" 200-G-TF 200GTFVI 200GTFWB 200GTFEP
2-1/2" 250-G-TF 250GTFVI - -
3" 300-G-TF 300GTFVI 300GTFWB 300GTFEP
4" 400-G-TF 400GTFVI 400GTFWB -
5" - - 500GTFWB -
6" 600-G-TF 600GTFVI - -
