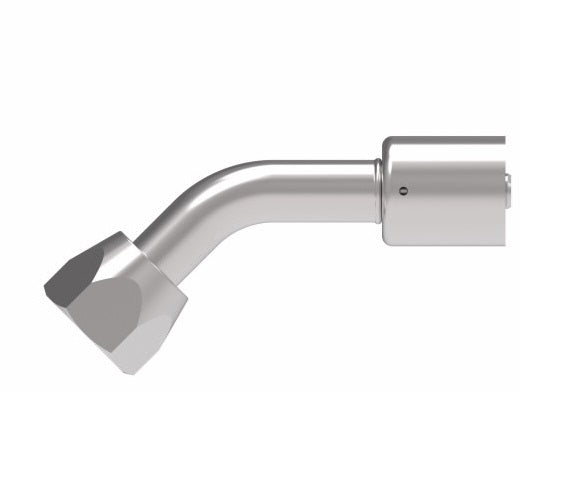

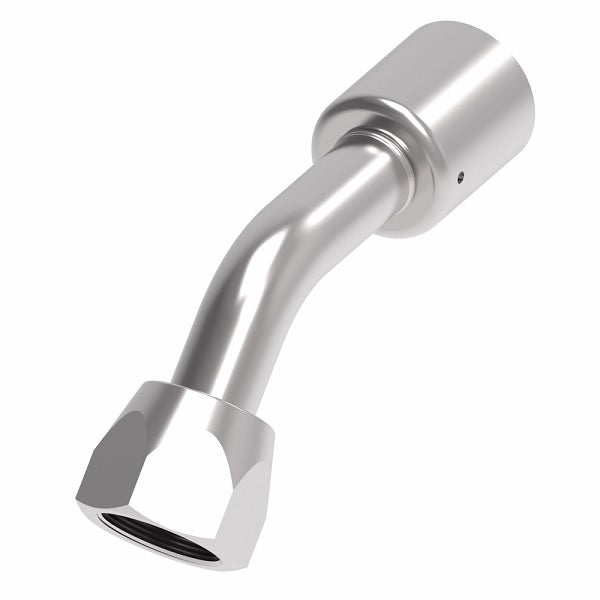

75706E-486 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Tube 45° Elbow Crimp Fitting | -06 Female SAE 45° Flare Swivel x -05 Hose Barb | Steel
75706E-486 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Tube 45° Elbow Crimp Fitting | -06 Female SAE 45° Flare Swivel x -05 Hose Barb | Steel
75706E-486 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Tube 45° Elbow Crimp Fitting | -06 Female SAE 45° Flare Swivel x -05 Hose Barb | Steel
75706E-486 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Tube 45° Elbow Crimp Fitting | -06 Female SAE 45° Flare Swivel x -05 Hose Barb | Steel

75706E-486 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Tube 45° Elbow Crimp Fitting | -06 Female SAE 45° Flare Swivel x -05 Hose Barb | Steel

$15.24 - $15.24
$15.24
$15.24 - $15.24
$15.24

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female SAE 45° Flare Swivel Tube - 45° Elbow
Specifications for Variant SKU: 75706E-486 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female SAE 45 Flare, 5/16in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Drop
B		 Hose Cut-Off
Factor		 Hex
F
75706E-486 5/16" 3/8" 5/8-18 3.42" 0.55" 2.00" 3/4"
75708E-488 13/32" 1/2" 3/4-16 3.72" 0.58" 2.50" 7/8"
75710E-490 1/2" 5/8" 7/8-14 4.34" 0.72" 3.00" 1-1/16"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
