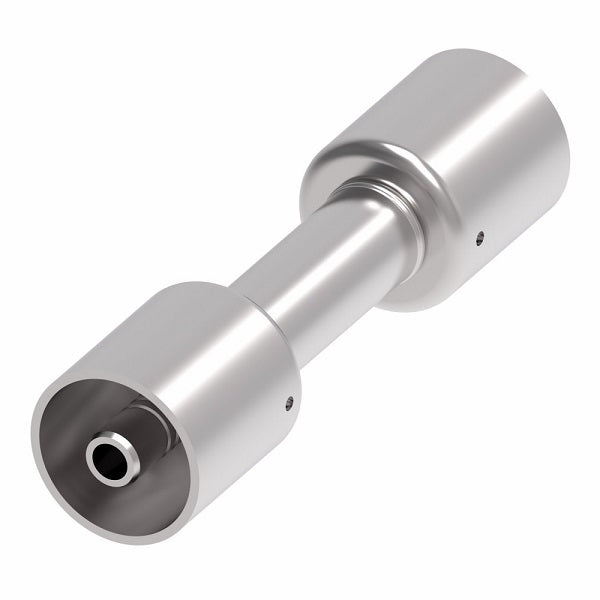

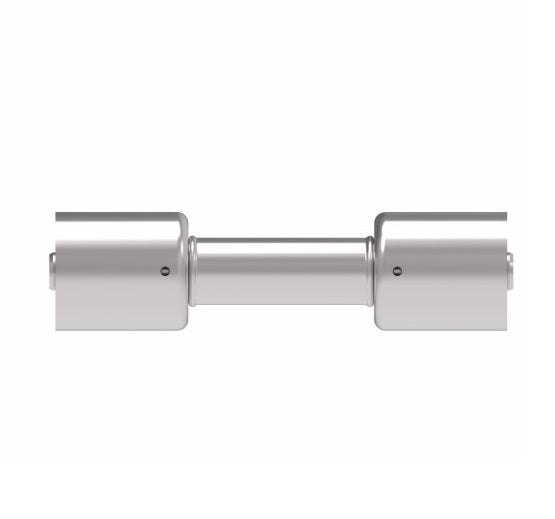

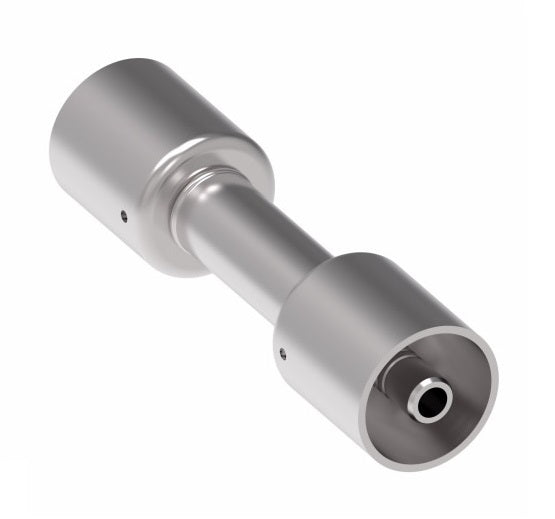

75706E-Y36 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 5/16" Hose ID x 5/16" Hose ID | Steel
75706E-Y36 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 5/16" Hose ID x 5/16" Hose ID | Steel
75706E-Y36 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 5/16" Hose ID x 5/16" Hose ID | Steel
75706E-Y36 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 5/16" Hose ID x 5/16" Hose ID | Steel

75706E-Y36 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 5/16" Hose ID x 5/16" Hose ID | Steel

$15.26 - $15.26
$15.26
$15.26 - $15.26
$15.26

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Hose Splicer - Straight
Specifications for Variant SKU: 75706E-Y36 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Hose Barb, 5/16in Hose Barb, Some Ends Match
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Hose I.D. Length
A		 Run
R		 Hose Cut-Off
Factor
75706E-Y36 5/16" 5/16" 4.30" 1.50" 1.50"
75706E-Y38 5/16" 13/32" 4.30" 1.50" 1.50"
75708E-Y38 13/32" 13/32" 4.30" 1.50" 1.50"
75708E-Y40 13/32" 1/2" 4.43" 1.63" 1.63"
75710E-Y40 1/2" 1/2" 4.43" 1.63" 1.63"
75710E-Y41 1/2" 5/8" 4.65" 1.75" 1.75"
75712E-Y41 5/8" 5/8" 4.75" 1.75" 1.75"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
