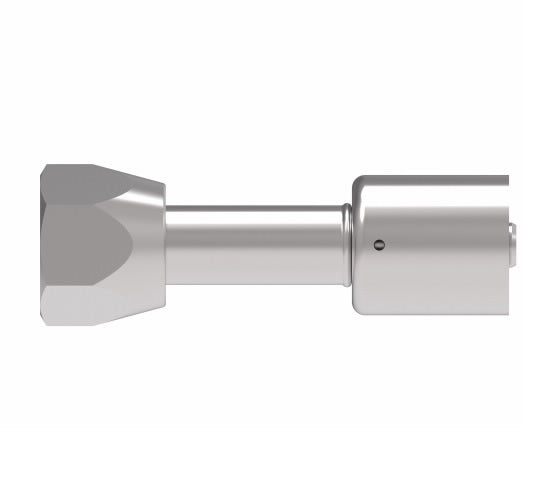

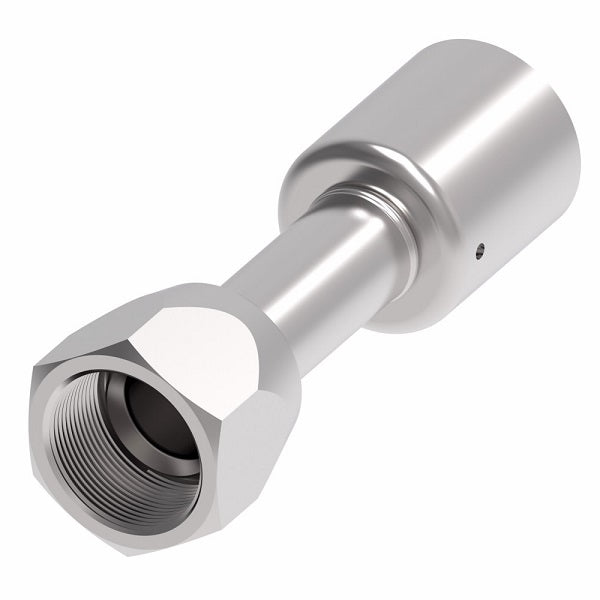

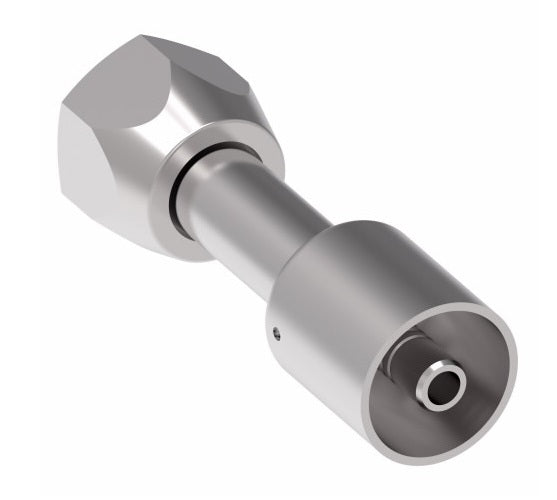

75706E-406 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Crimp Fitting | -06 Female SAE 45° Flare Swivel x -05 Hose Barb | Steel

75706E-406 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Crimp Fitting | -06 Female SAE 45° Flare Swivel x -05 Hose Barb | Steel

Name: 75706E-406 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Crimp Fitting | -06 Female SAE 45° Flare Swivel x -05 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75706E-406 Danfoss
Price: 15.3 USD
Availability: InStock

$15.30 - $15.30

$15.30

$15.30 - $15.30

$15.30

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female SAE 45° Flare Swivel - Straight

Quantity

Specifications for Variant SKU: 75706E-406 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female SAE 45 Flare, 5/16in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Length A	Run R	Hose Cut-Off Factor	Hex F
75706E-406	5/16"	3/8"	5/8-18	2.78"	1.38"	1.50"	3/4"
75706E-408	5/16"	1/2"	3/4-16	2.90"	1.50"	1.75"	7/8"
75708E-408	13/32"	1/2"	3/4-16	2.84"	1.44"	1.56"	7/8"
75710E-410	1/2"	5/8"	7/8-14	3.09"	1.69"	1.81"	1-1/16"
75712E-410	5/8"	5/8"	7/8-14	3.25"	1.75"	2.00"	1-1/16"

Note: Drawings may differ from actual parts.
