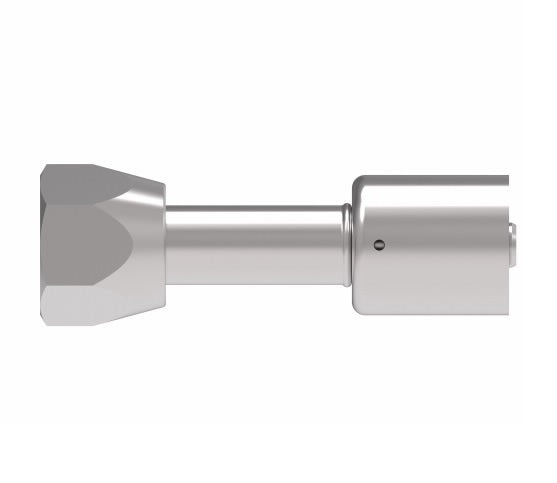

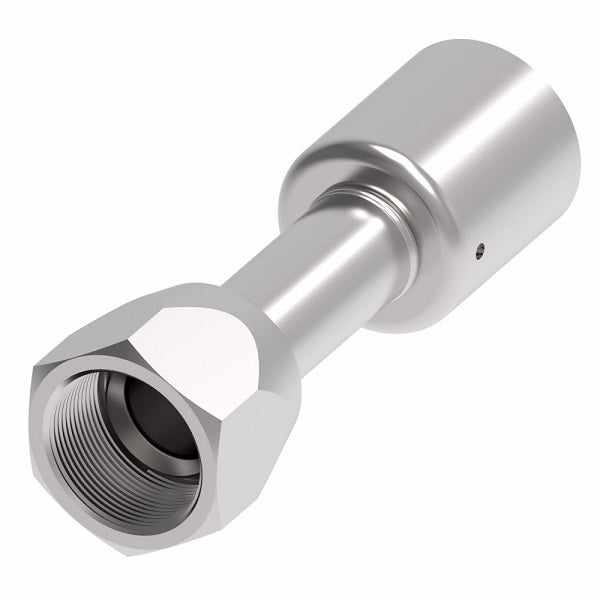

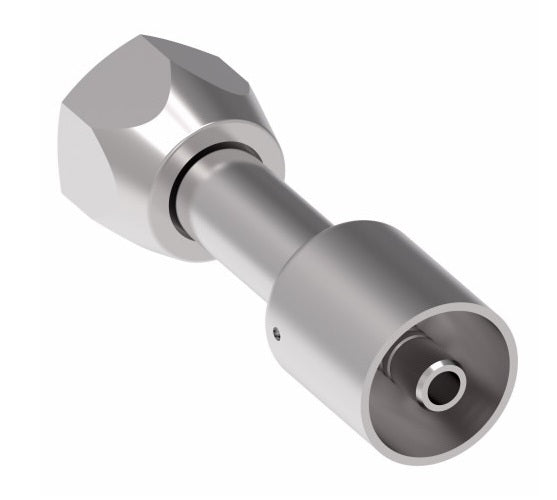

75710E-410 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Crimp Fitting | -10 Female SAE 45° Flare Swivel x -08 Hose Barb | Steel
75710E-410 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Crimp Fitting | -10 Female SAE 45° Flare Swivel x -08 Hose Barb | Steel
75710E-410 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Crimp Fitting | -10 Female SAE 45° Flare Swivel x -08 Hose Barb | Steel
75710E-410 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Crimp Fitting | -10 Female SAE 45° Flare Swivel x -08 Hose Barb | Steel

75710E-410 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Crimp Fitting | -10 Female SAE 45° Flare Swivel x -08 Hose Barb | Steel

$18.27 - $18.27
$18.27
$18.27 - $18.27
$18.27

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female SAE 45° Flare Swivel - Straight
Specifications for Variant SKU: 75710E-410 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Female SAE 45 Flare, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
R		 Hose Cut-Off
Factor		 Hex
F
75706E-406 5/16" 3/8" 5/8-18 2.78" 1.38" 1.50" 3/4"
75706E-408 5/16" 1/2" 3/4-16 2.90" 1.50" 1.75" 7/8"
75708E-408 13/32" 1/2" 3/4-16 2.84" 1.44" 1.56" 7/8"
75710E-410 1/2" 5/8" 7/8-14 3.09" 1.69" 1.81" 1-1/16"
75712E-410 5/8" 5/8" 7/8-14 3.25" 1.75" 2.00" 1-1/16"

Note: Drawings may differ from actual parts.
