75706E-W66 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Rigid Tube 90° Elbow Crimp Fitting | -06 Male Bumped Tube O-Ring x -05 Hose Barb | Steel

75706E-W66 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Rigid Tube 90° Elbow Crimp Fitting | -06 Male Bumped Tube O-Ring x -05 Hose Barb | Steel

Name: 75706E-W66 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Rigid Tube 90° Elbow Crimp Fitting | -06 Male Bumped Tube O-Ring x -05 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75706E-W66 Danfoss
Price: 23.79 USD
Availability: InStock

$23.79 - $23.79

$23.79

$23.79 - $23.79

$23.79

Weatherhead by Danfoss

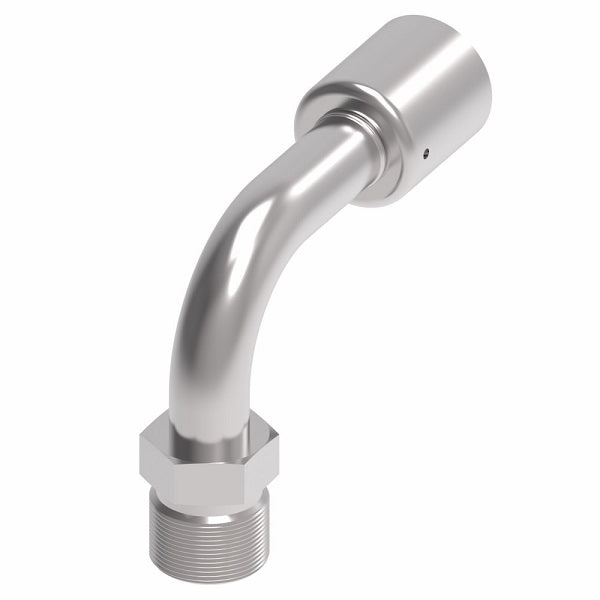

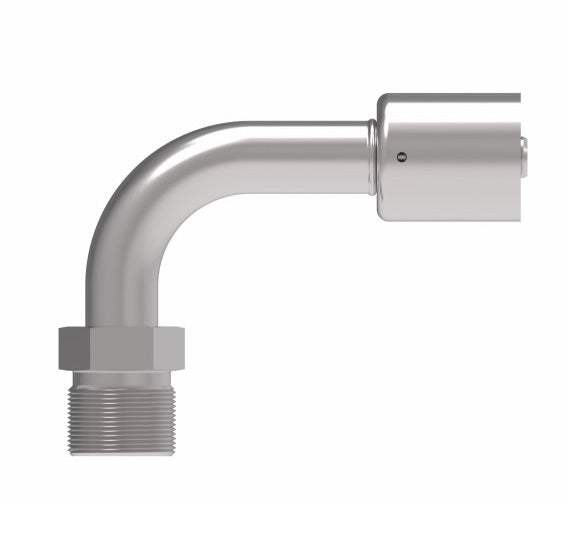

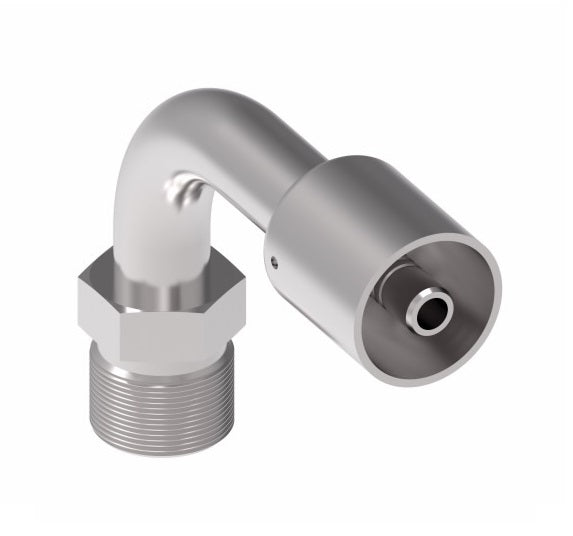

Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Bumped Tube O-Ring Rigid Tube - 90° Elbow

Quantity

Specifications for Variant SKU: 75706E-W66 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Length A	Run R	Drop B	Hose Cut-Off Factor	Hex F
75706E-W66	5/16"	3/8"	5/8-18	4.00"	2.60"	1.53"	2.75"	5/8"
75708E-W68	13/32"	1/2"	3/4-16	4.07"	2.67"	2.12"	2.75"	3/4"
75710E-W70	1/2"	5/8"	7/8-14	4.15"	2.75"	2.21"	2.88"	7/8"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
