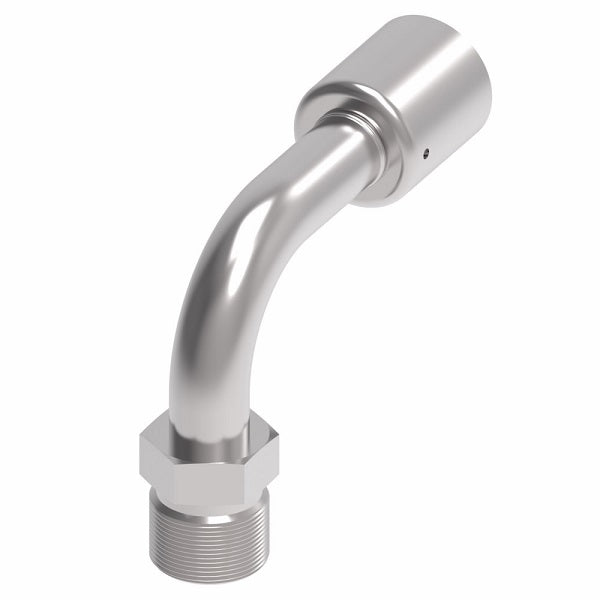

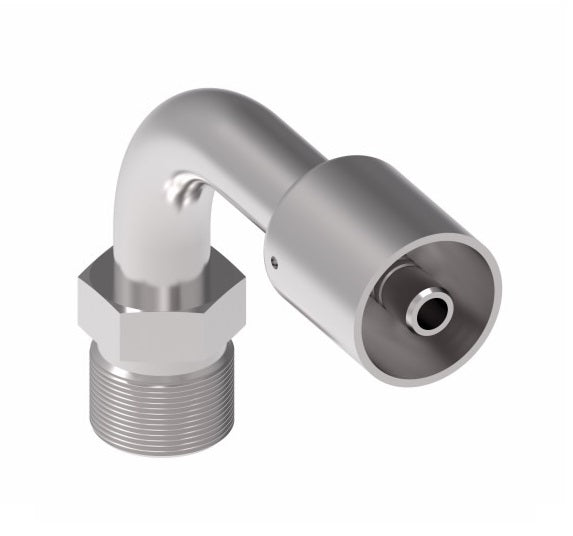

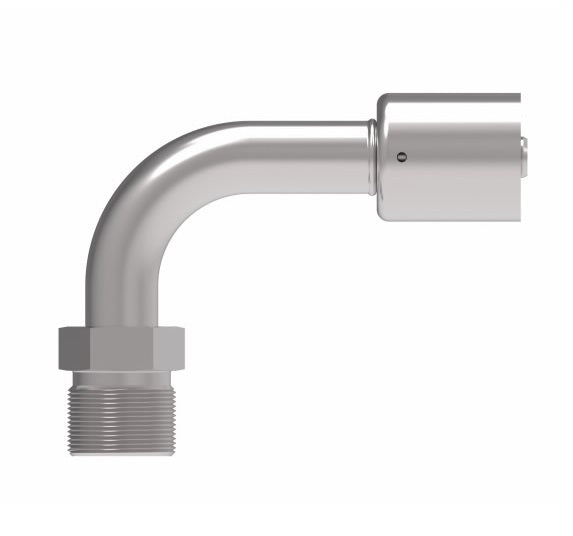

75710E-W70 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Rigid Tube 90° Elbow Crimp Fitting | -10 Male Bumped Tube O-Ring x -08 Hose Barb | Steel

75710E-W70 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Rigid Tube 90° Elbow Crimp Fitting | -10 Male Bumped Tube O-Ring x -08 Hose Barb | Steel

Name: 75710E-W70 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Rigid Tube 90° Elbow Crimp Fitting | -10 Male Bumped Tube O-Ring x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75710E-W70 Danfoss
Price: 33.96 USD
Availability: InStock

$33.96 - $33.96

$33.96

$33.96 - $33.96

$33.96

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Bumped Tube O-Ring Rigid Tube - 90° Elbow

Quantity

Specifications for Variant SKU: 75710E-W70 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Length A	Run R	Drop B	Hose Cut-Off Factor	Hex F
75706E-W66	5/16"	3/8"	5/8-18	4.00"	2.60"	1.53"	2.75"	5/8"
75708E-W68	13/32"	1/2"	3/4-16	4.07"	2.67"	2.12"	2.75"	3/4"
75710E-W70	1/2"	5/8"	7/8-14	4.15"	2.75"	2.21"	2.88"	7/8"

Note: Drawings may differ from actual parts.
