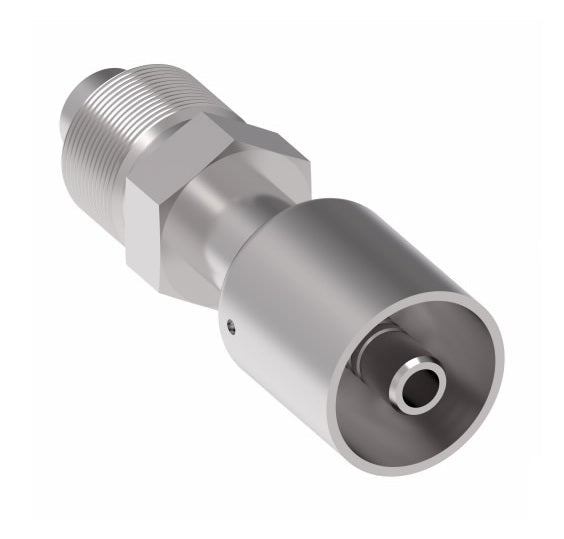

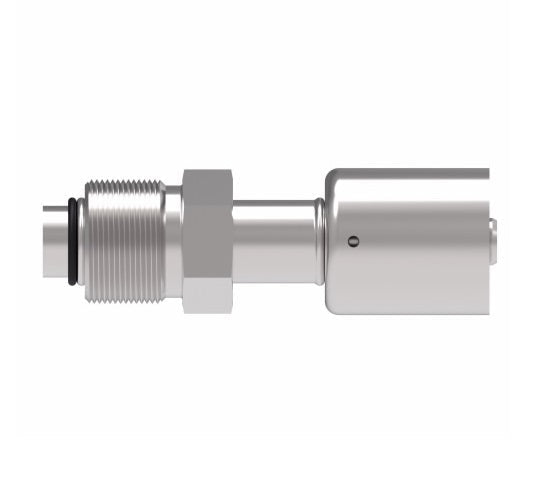

75706E-Z08 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Crimp Fitting | -08 Male Bumped Tube O-Ring -06 Hose Barb | Steel
75706E-Z08 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Crimp Fitting | -08 Male Bumped Tube O-Ring -06 Hose Barb | Steel
75706E-Z08 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Crimp Fitting | -08 Male Bumped Tube O-Ring -06 Hose Barb | Steel
75706E-Z08 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Crimp Fitting | -08 Male Bumped Tube O-Ring -06 Hose Barb | Steel

75706E-Z08 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Crimp Fitting | -08 Male Bumped Tube O-Ring -06 Hose Barb | Steel

$26.39 - $26.39
$26.39
$26.39 - $26.39
$26.39

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Bumped Tube O-Ring Swivel - Straight
Specifications for Variant SKU: 75706E-Z08 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
R		 Hose Cut-Off
Factor		 Hex
F		 O-Ring
75706E-Z06 5/16" 3/8" 5/8-18 2.94" 1.54" 1.63" 5/8" ZW74706
75706E-Z08 5/16" 1/2" 3/4-18 3.15" 1.75" 1.88" 3/4" ZW74708
75708E-Z08 13/32" 1/2" 3/4-18 3.26" 1.86" 2.00" 3/4" ZW74708
75710E-Z10 1/2" 5/8" 7/8-18 3.35" 1.95" 2.13" 7/8" ZW74710
75710E-Z12 1/2" 3/4" 1-1/16-16 3.46" 2.06" 2.25" 1-1/16" ZW74712
75712E-Z10 5/8" 5/8" 7/8-18 3.56" 2.06" 2.25" 7/8" ZW74710
75712E-Z12 5/8" 3/4" 1-1/16-16 3.56" 2.06" 2.25" 1-1/16" ZW74712

Note: Drawings may differ from actual parts.
