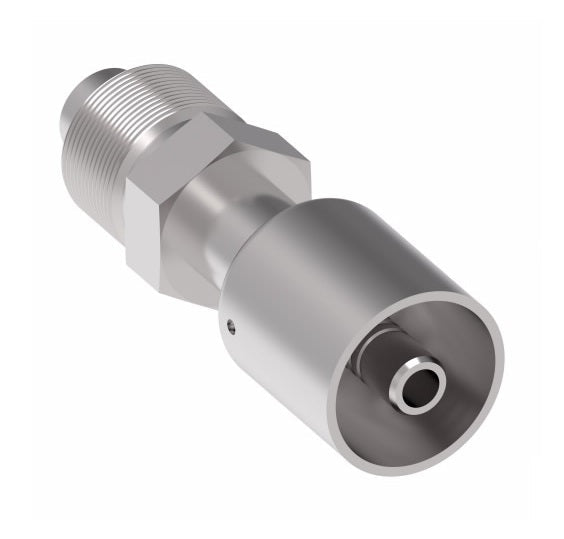

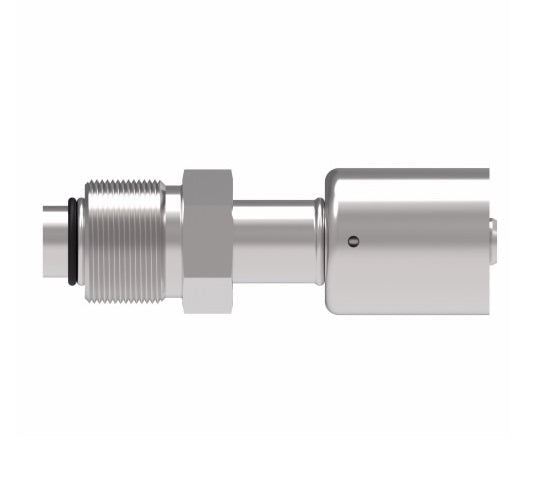

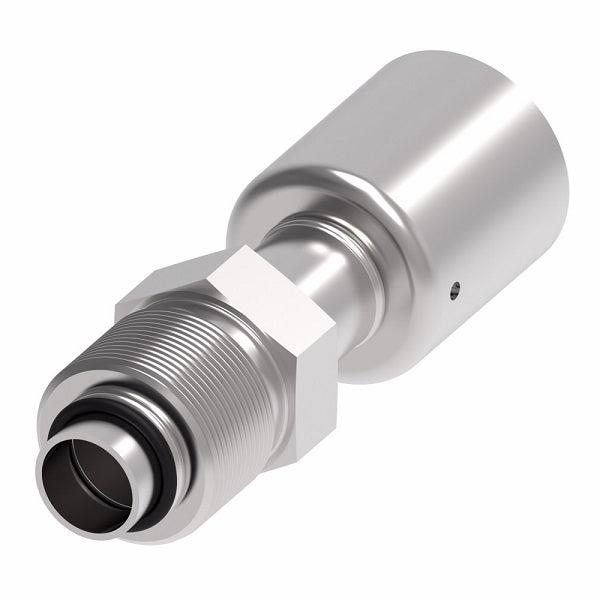

75712E-Z12 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Crimp Fitting | -12 Male Bumped Tube O-Ring -08 Hose Barb | Steel
75712E-Z12 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Crimp Fitting | -12 Male Bumped Tube O-Ring -08 Hose Barb | Steel
75712E-Z12 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Crimp Fitting | -12 Male Bumped Tube O-Ring -08 Hose Barb | Steel
75712E-Z12 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Crimp Fitting | -12 Male Bumped Tube O-Ring -08 Hose Barb | Steel

75712E-Z12 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Crimp Fitting | -12 Male Bumped Tube O-Ring -08 Hose Barb | Steel

$20.73 - $20.73
$20.73
$20.73 - $20.73
$20.73

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Bumped Tube O-Ring Swivel - Straight
Specifications for Variant SKU: 75712E-Z12 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
R		 Hose Cut-Off
Factor		 Hex
F		 O-Ring
75706E-Z06 5/16" 3/8" 5/8-18 2.94" 1.54" 1.63" 5/8" ZW74706
75706E-Z08 5/16" 1/2" 3/4-18 3.15" 1.75" 1.88" 3/4" ZW74708
75708E-Z08 13/32" 1/2" 3/4-18 3.26" 1.86" 2.00" 3/4" ZW74708
75710E-Z10 1/2" 5/8" 7/8-18 3.35" 1.95" 2.13" 7/8" ZW74710
75710E-Z12 1/2" 3/4" 1-1/16-16 3.46" 2.06" 2.25" 1-1/16" ZW74712
75712E-Z10 5/8" 5/8" 7/8-18 3.56" 2.06" 2.25" 7/8" ZW74710
75712E-Z12 5/8" 3/4" 1-1/16-16 3.56" 2.06" 2.25" 1-1/16" ZW74712

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
