75708E-308 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid Crimp Fitting | -08 Male SAE 45° x -08 Hose Barb | Steel
75708E-308 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid Crimp Fitting | -08 Male SAE 45° x -08 Hose Barb | Steel
75708E-308 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid Crimp Fitting | -08 Male SAE 45° x -08 Hose Barb | Steel
75708E-308 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid Crimp Fitting | -08 Male SAE 45° x -08 Hose Barb | Steel

75708E-308 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid Crimp Fitting | -08 Male SAE 45° x -08 Hose Barb | Steel

$45.50 - $45.50
$45.50
$45.50 - $45.50
$45.50

Weatherhead by Danfoss

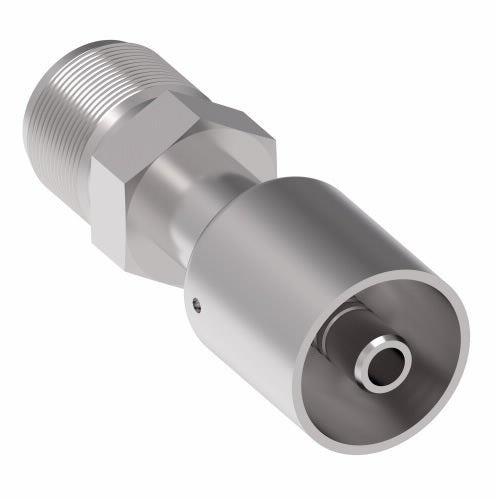

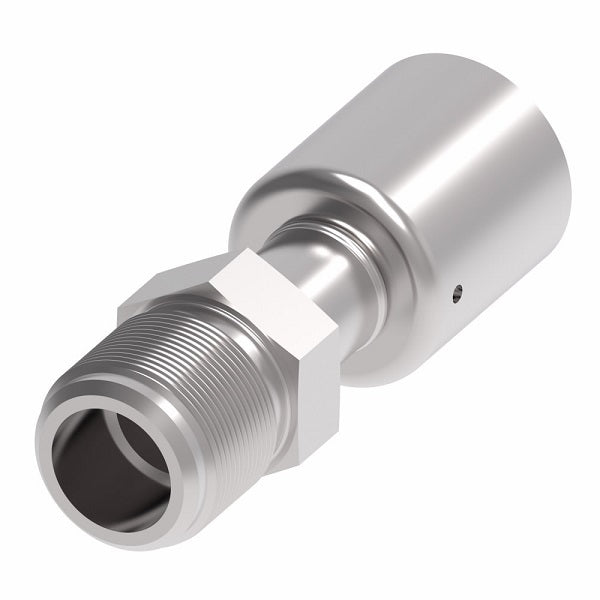

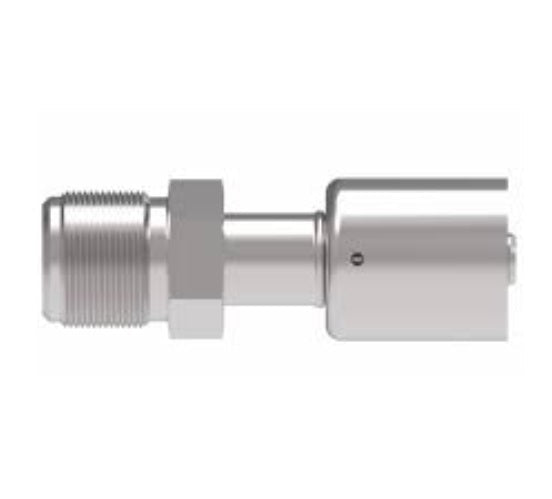

Coll-O-Crimp 757 'E' Series Crimp Fitting - Male SAE 45° Rigid - Straight
Specifications for Variant SKU: 75708E-308 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male SAE 45 Flare, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
R		 Hose Cut-Off
Factor		 Hex
F
75706E-306 5/16" 3/8" 5/8-18 3.28" 1.88" 2.00" 5/8"
75708E-308 13/32" 1/2" 3/4-16 3.40" 2.00" 2.13" 3/4"
75710E-310 1/2" 5/8" 7/8-14 3.71" 2.31" 2.50" 7/8"
75712E-312 5/8" 3/4" 1-1/16-14 4.00" 2.50" 2.75" 1-1/16"

Note: Drawings may differ from actual parts.
