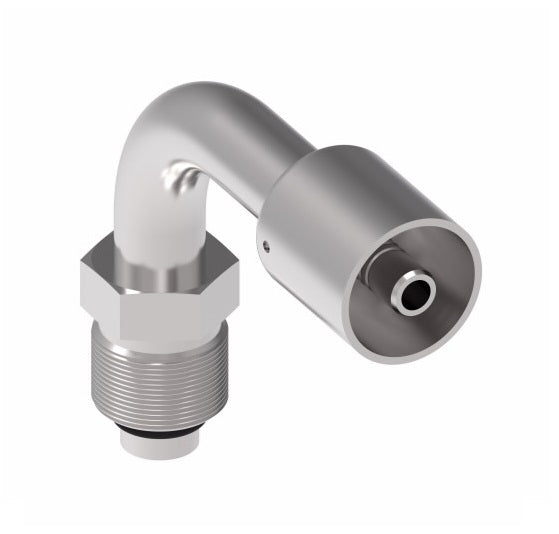

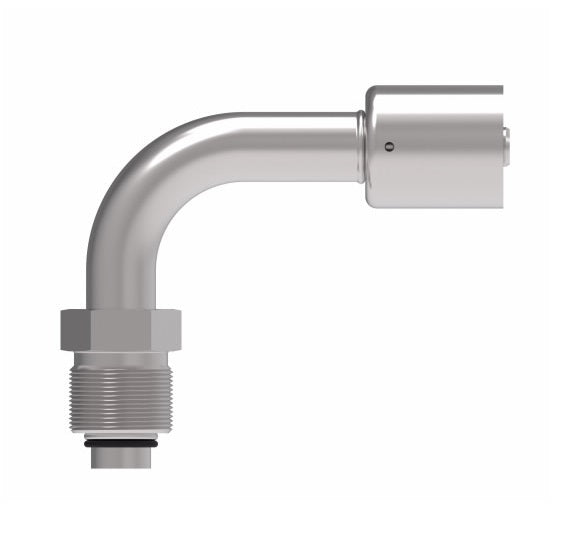

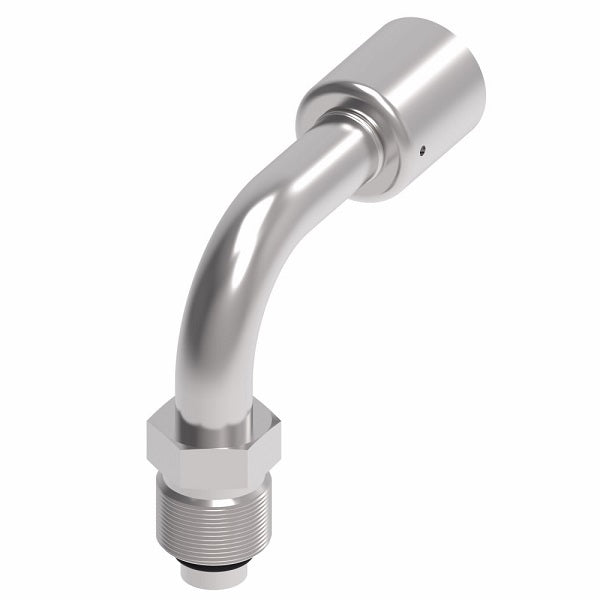

75708E-Z68 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -08 Male Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
75708E-Z68 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -08 Male Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
75708E-Z68 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -08 Male Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
75708E-Z68 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -08 Male Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

75708E-Z68 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -08 Male Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

$25.51 - $25.51
$25.51
$25.51 - $25.51
$25.51

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Bumped Tube O-Ring Swivel Tube - 90° Elbow
Specifications for Variant SKU: 75708E-Z68 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 90 Degree
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
R		 Drop
B		 Hose Cut-Off
Factor		 Hex
F
75706E-Z66 5/16" 3/8" 5/8-18 4.00" 2.60" 1.53" 2.75" 5/8"
75706E-Z68 5/16" 1/2" 3/4-18 4.07" 2.67" 1.53" 2.75" 3/4"
75706E-Z66 13/32" 3/8" 5/8-18 4.00" 2.60" 1.77" 2.75" 5/8"
75708E-Z68 13/32" 1/2" 3/4-16 4.07" 2.67" 2.12" 2.75" 3/4"
75710E-Z70 1/2" 5/8" 7/8-18 4.15" 2.75" 2.21" 2.88" 7/8"
75710E-Z72 1/2" 3/4" 1-1/16-16 4.25" 2.85" 2.35" 3.00" 1-1/16"
75712E-Z70 5/8" 5/8" 7/8-18 4.24" 2.74" 2.25" 2.88" 7/8"
75712E-Z72 5/8" 3/4" 1-1/16-16 4.35" 2.85" 2.87" 3.00" 1-1/16"

Note: Drawings may differ from actual parts.
