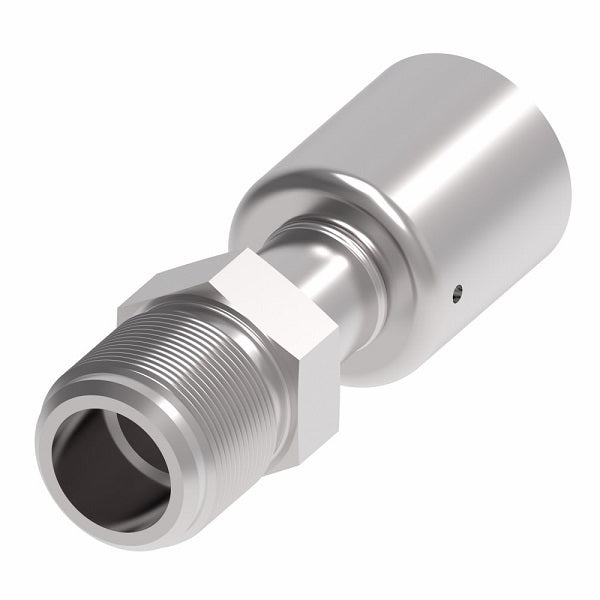

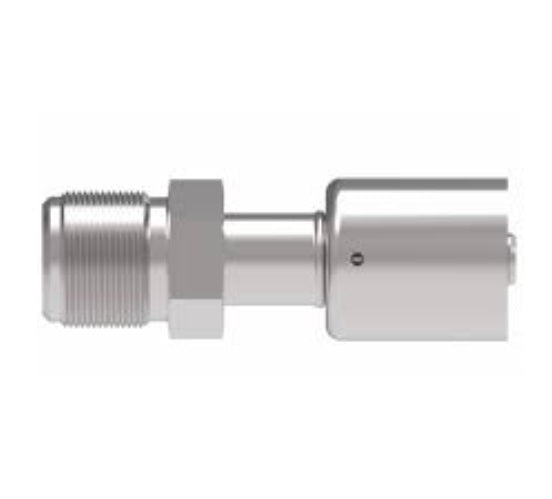

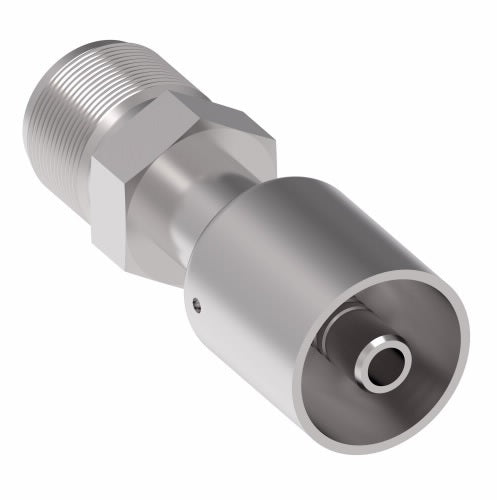

75710E-310 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid Crimp Fitting | -10 Male SAE 45° x -08 Hose Barb | Steel

75710E-310 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid Crimp Fitting | -10 Male SAE 45° x -08 Hose Barb | Steel

Name: 75710E-310 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid Crimp Fitting | -10 Male SAE 45° x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75710E-310 Danfoss
Price: 51.36 USD
Availability: InStock

$51.36 - $51.36

$51.36

$51.36 - $51.36

$51.36

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male SAE 45° Rigid - Straight

Quantity

Specifications for Variant SKU: 75710E-310 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male SAE 45 Flare, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Length A	Run R	Hose Cut-Off Factor	Hex F
75706E-306	5/16"	3/8"	5/8-18	3.28"	1.88"	2.00"	5/8"
75708E-308	13/32"	1/2"	3/4-16	3.40"	2.00"	2.13"	3/4"
75710E-310	1/2"	5/8"	7/8-14	3.71"	2.31"	2.50"	7/8"
75712E-312	5/8"	3/4"	1-1/16-14	4.00"	2.50"	2.75"	1-1/16"

Note: Drawings may differ from actual parts.
