75710E-Y41 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 1/2" Hose ID x 5/8" Hose ID | Steel

75710E-Y41 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 1/2" Hose ID x 5/8" Hose ID | Steel

Name: 75710E-Y41 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 1/2" Hose ID x 5/8" Hose ID | Steel
Brand: Danfoss/Eaton
SKU: 75710E-Y41 Danfoss
Price: 26.88 USD
Availability: InStock

$26.88 - $26.88

$26.88

$26.88 - $26.88

$26.88

Weatherhead by Danfoss

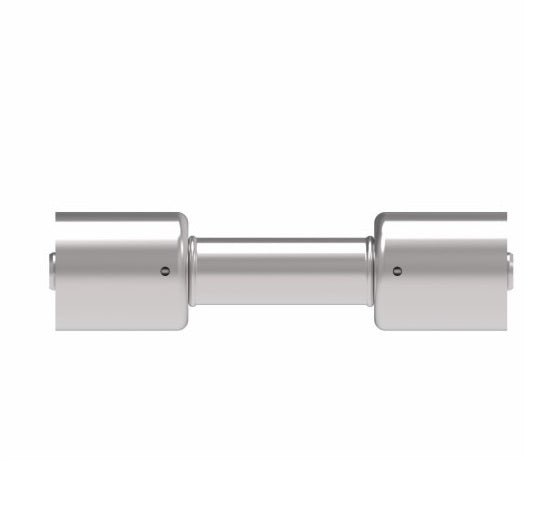

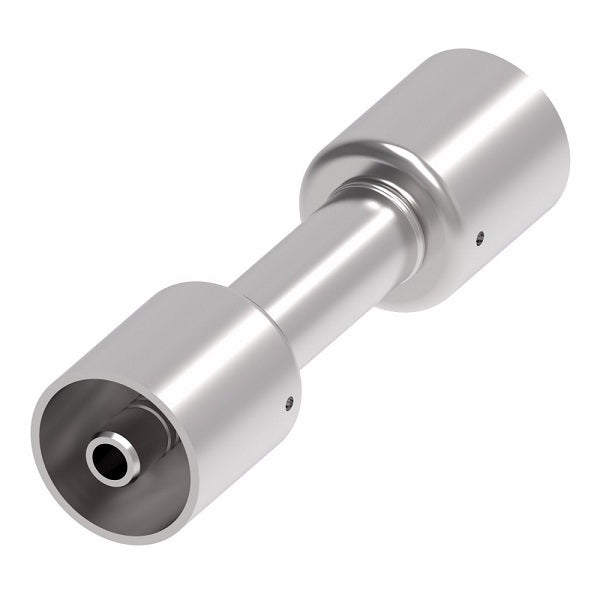

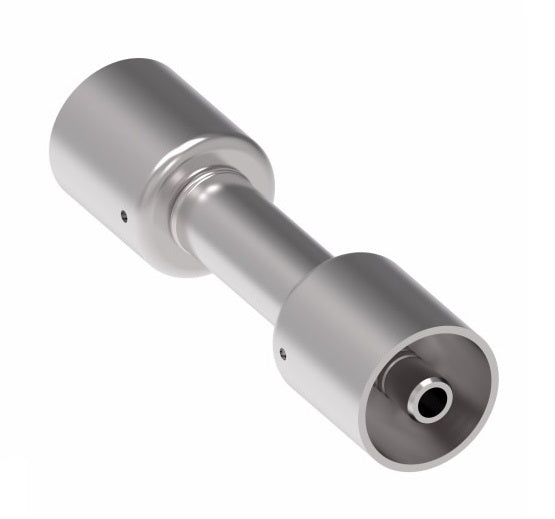

Coll-O-Crimp 757 'E' Series Crimp Fitting - Hose Splicer - Straight

Quantity

Specifications for Variant SKU: 75710E-Y41 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Hose I.D.	Length A	Run R	Hose Cut-Off Factor
75706E-Y36	5/16"	5/16"	4.30"	1.50"	1.50"
75706E-Y38	5/16"	13/32"	4.30"	1.50"	1.50"
75708E-Y38	13/32"	13/32"	4.30"	1.50"	1.50"
75708E-Y40	13/32"	1/2"	4.43"	1.63"	1.63"
75710E-Y40	1/2"	1/2"	4.43"	1.63"	1.63"
75710E-Y41	1/2"	5/8"	4.65"	1.75"	1.75"
75712E-Y41	5/8"	5/8"	4.75"	1.75"	1.75"

Note: Drawings may differ from actual parts.
