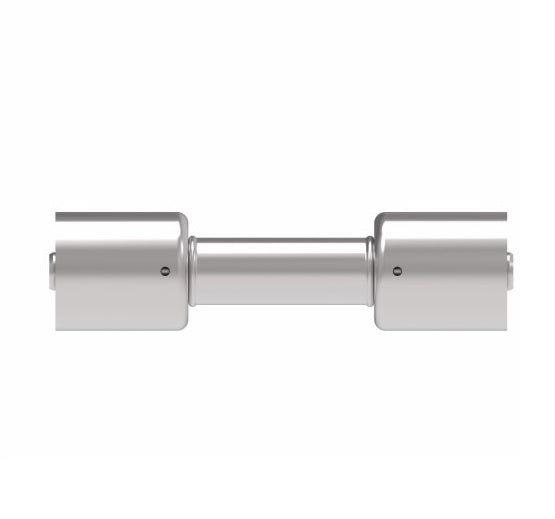

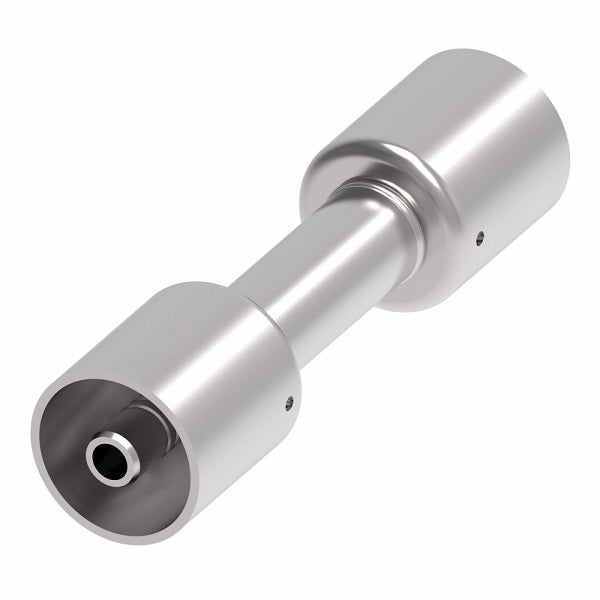

75712E-Y41 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 5/8" Hose ID x 5/8" Hose ID | Steel

75712E-Y41 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 5/8" Hose ID x 5/8" Hose ID | Steel

Name: 75712E-Y41 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer Crimp Fitting | 5/8" Hose ID x 5/8" Hose ID | Steel
Brand: Danfoss/Eaton
SKU: 75712E-Y41 Danfoss
Price: 27.1 USD
Availability: InStock

$27.10 - $27.10

$27.10

$27.10 - $27.10

$27.10

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Hose Splicer - Straight

Quantity

Specifications for Variant SKU: 75712E-Y41 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Hose Barb, 5/8in Hose Barb, Some Ends Match
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Hose I.D.	Length A	Run R	Hose Cut-Off Factor
75706E-Y36	5/16"	5/16"	4.30"	1.50"	1.50"
75706E-Y38	5/16"	13/32"	4.30"	1.50"	1.50"
75708E-Y38	13/32"	13/32"	4.30"	1.50"	1.50"
75708E-Y40	13/32"	1/2"	4.43"	1.63"	1.63"
75710E-Y40	1/2"	1/2"	4.43"	1.63"	1.63"
75710E-Y41	1/2"	5/8"	4.65"	1.75"	1.75"
75712E-Y41	5/8"	5/8"	4.75"	1.75"	1.75"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
