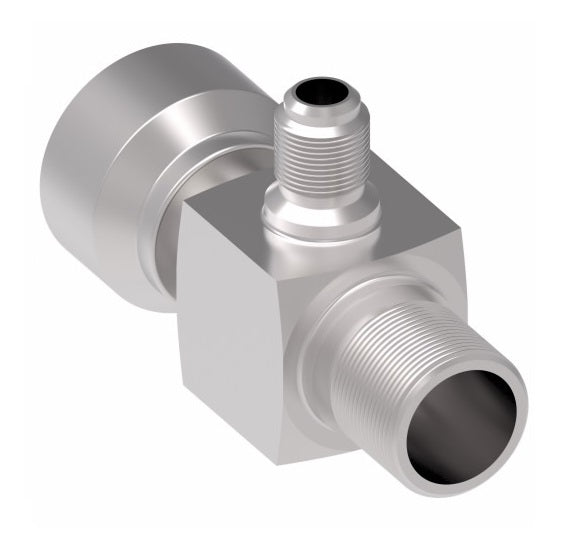

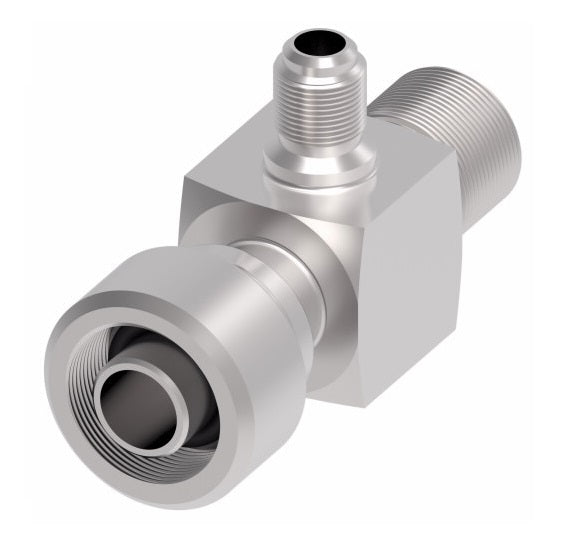

75729 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with High Service Port 90° Elbow | 3/8" Tube Size | Steel
75729 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with High Service Port 90° Elbow | 3/8" Tube Size | Steel
75729 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with High Service Port 90° Elbow | 3/8" Tube Size | Steel
75729 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with High Service Port 90° Elbow | 3/8" Tube Size | Steel

75729 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with High Service Port 90° Elbow | 3/8" Tube Size | Steel

$44.64 - $44.64
$44.64
$44.64 - $44.64
$44.64

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Bumped Tube O-Ring R134a Service Port Adapter - 90° Elbow
Specifications for Variant SKU: 75729 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 90 Degree
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Tube Size Thread Size
G		 Port Length
A		 Drop
B		 Across Flats Hex
F
75729 3/8" 5/8-18 High Service Port 2.40" 1.05" 5/8" 3/4"
75730 1/2" 3/4-16 High Service Port 2.60" 1.15" 7/8" 7/8"
75731 5/8" 7/8-14 Low Service Port 2.74" 1.30" 7/8" 1-1/16"
75732 3/4" 1-1/16-14 Low Service Port 3.10" 1.39" 1-1/16" 1-1/4"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
