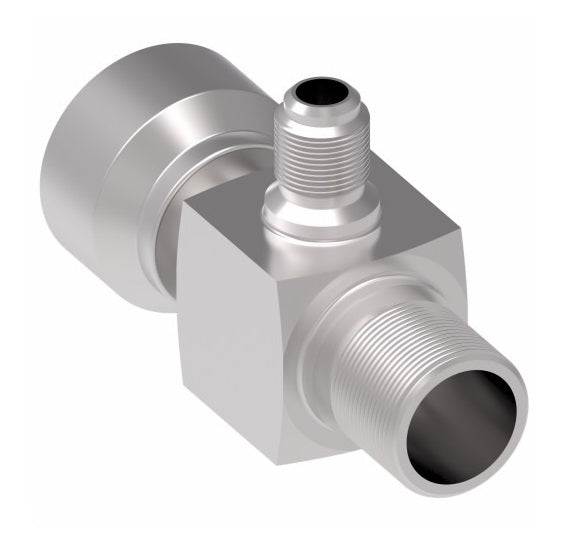

75731 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with Low Service Port 90° Elbow | 5/8" Tube Size | Steel

75731 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with Low Service Port 90° Elbow | 5/8" Tube Size | Steel

Name: 75731 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with Low Service Port 90° Elbow | 5/8" Tube Size | Steel
Brand: Danfoss/Eaton
SKU: 75731 Danfoss
Price: 53.12 USD
Availability: InStock

$53.12 - $53.12

$53.12

$53.12 - $53.12

$53.12

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Bumped Tube O-Ring R134a Service Port Adapter - 90° Elbow

Specifications for Variant SKU: 75731 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Tube Size	Thread Size G	Port	Length A	Drop B	Across Flats	Hex F
75729	3/8"	5/8-18	High Service Port	2.40"	1.05"	5/8"	3/4"
75730	1/2"	3/4-16	High Service Port	2.60"	1.15"	7/8"	7/8"
75731	5/8"	7/8-14	Low Service Port	2.74"	1.30"	7/8"	1-1/16"
75732	3/4"	1-1/16-14	Low Service Port	3.10"	1.39"	1-1/16"	1-1/4"

Note: Drawings may differ from actual parts.
