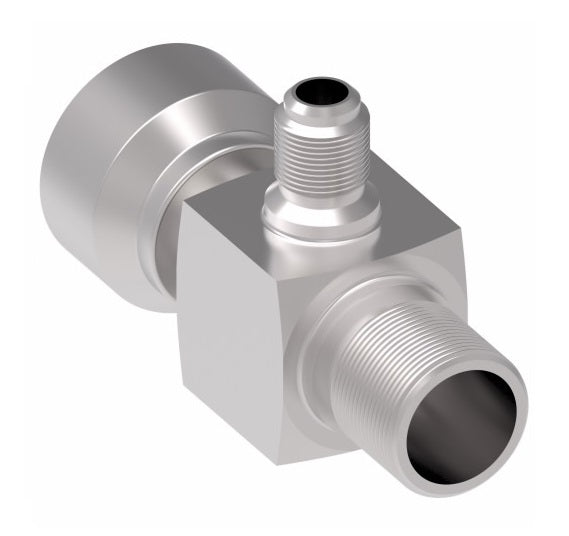

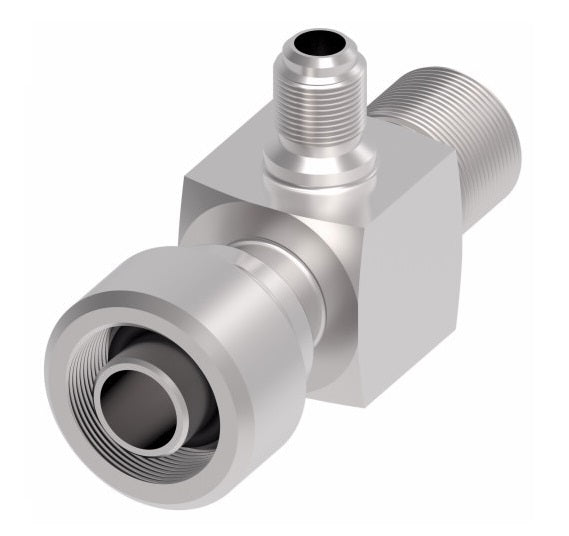

75730 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with High Service Port 90° Elbow | 1/2" Tube Size | Steel
75730 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with High Service Port 90° Elbow | 1/2" Tube Size | Steel
75730 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with High Service Port 90° Elbow | 1/2" Tube Size | Steel
75730 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with High Service Port 90° Elbow | 1/2" Tube Size | Steel

75730 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter R134a with High Service Port 90° Elbow | 1/2" Tube Size | Steel

$51.66 - $51.66
$51.66
$51.66 - $51.66
$51.66

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Bumped Tube O-Ring R134a Service Port Adapter - 90° Elbow
Specifications for Variant SKU: 75730 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 90 Degree
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Tube Size Thread Size
G		 Port Length
A		 Drop
B		 Across Flats Hex
F
75729 3/8" 5/8-18 High Service Port 2.40" 1.05" 5/8" 3/4"
75730 1/2" 3/4-16 High Service Port 2.60" 1.15" 7/8" 7/8"
75731 5/8" 7/8-14 Low Service Port 2.74" 1.30" 7/8" 1-1/16"
75732 3/4" 1-1/16-14 Low Service Port 3.10" 1.39" 1-1/16" 1-1/4"

Note: Drawings may differ from actual parts.
