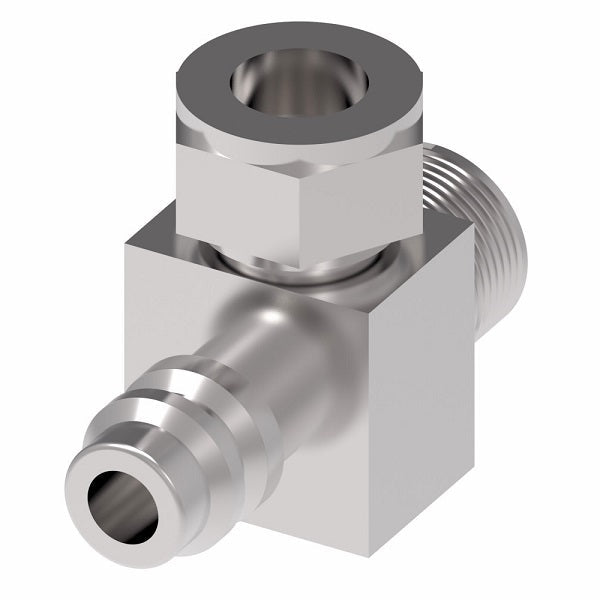

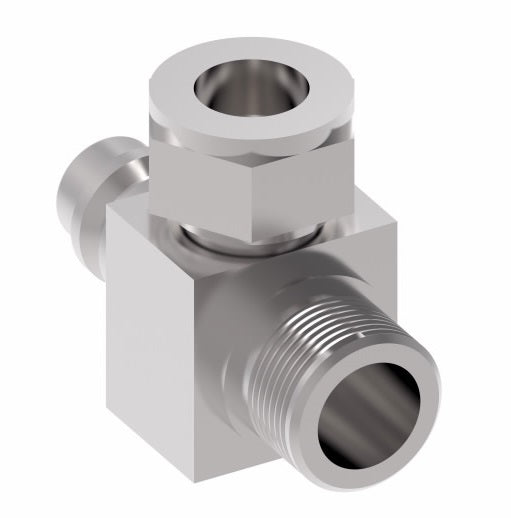

75761 Weatherhead by Danfoss | 757 'E' Series | Rotalok to Male Bumped Tube O-Ring with R134a Low Side Service Port 90° Elbow Adapter | 5/8" Tube Size | Steel
75761 Weatherhead by Danfoss | 757 'E' Series | Rotalok to Male Bumped Tube O-Ring with R134a Low Side Service Port 90° Elbow Adapter | 5/8" Tube Size | Steel
75761 Weatherhead by Danfoss | 757 'E' Series | Rotalok to Male Bumped Tube O-Ring with R134a Low Side Service Port 90° Elbow Adapter | 5/8" Tube Size | Steel
75761 Weatherhead by Danfoss | 757 'E' Series | Rotalok to Male Bumped Tube O-Ring with R134a Low Side Service Port 90° Elbow Adapter | 5/8" Tube Size | Steel

75761 Weatherhead by Danfoss | 757 'E' Series | Rotalok to Male Bumped Tube O-Ring with R134a Low Side Service Port 90° Elbow Adapter | 5/8" Tube Size | Steel

$41.54 - $41.54
$41.54
$41.54 - $41.54
$41.54

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Rotalok to Male Bumped Tube O-Ring with R134a High Side Service Adapter - 90° Elbow
Specifications for Variant SKU: 75761 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 90 Degree
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Tube Size Port Length
A		 Drop
B		 Rotalok Thread
F
75760 1/2" High Side Service Port 2.64" 1.15" 1-14
75761 5/8" Low Side Service Port 2.78" 1.29" 1-14

Note: Drawings may differ from actual parts.
