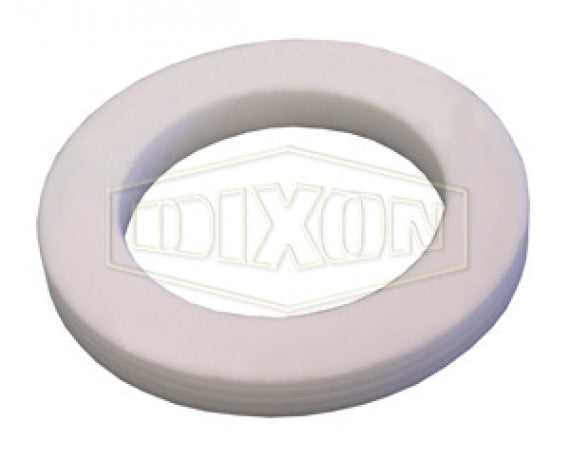

75GTFACC by Dixon Valve | Cam & Groove Accordion Gasket | 3/4" Size | PTFE (TFE)

75GTFACC by Dixon Valve | Cam & Groove Accordion Gasket | 3/4" Size | PTFE (TFE)

Save $6.46 Save $6.46
$16.15
$16.15 - $16.15
$16.15
$9.69
$9.69 - $9.69
$9.69

Dixon Valve
Cam & Groove Accordion Gasket

PTFE accordion gaskets (TFACC) are recommended for use with viscous (thick) fluids only.
Specifications for Variant SKU: 75GTFACC Dixon
Seal Material(s): PTFE
Safety Notes:
  • Maximum operating temperatures for specific chemicals may be lower; contact Dixon® for specific recommendations.
  • The torque (force) required to close the handles on a pair of cam & groove fittings will vary according to the gasket chosen. Due to the nature of the PTFE material, the various PTFE gasket designs will require the most torque, increasing as you go from envelope to encapsulated, and finally, accordion.
Cam & Groove Accordion Gasket Chart

Size PTFE (TFE)
Part Number
Color: White
Color Code: None
75GTFACC 3/4"
100GTFACC 1"
125GTFACC 1-1/4"
150GTFACC 1-1/2"
200GTFACC 2"
300GTFACC 3"
