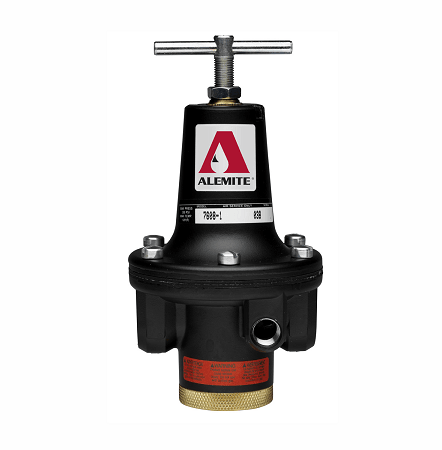

7608-1 by Alemite | Regulator | Max inlet Pressure: 300 PSI | Max Regulated Pressure: 125 PSI | Inlet/Outlet: 1/2" Female NPTF

7608-1 by Alemite | Regulator | Max inlet Pressure: 300 PSI | Max Regulated Pressure: 125 PSI | Inlet/Outlet: 1/2" Female NPTF

Save $52.59 Save $52.59
$184.07
$184.07 - $184.07
$184.07
$131.48
$131.48 - $131.48
$131.48

PRODUCT DESCRIPTION

Alemite Compressed Air Components - Regulators
Specifications for Variant SKU: 7608-1 Alemite
Applications:
  • Alemite Compressed Air Components allow you to accurately and reliably regulate, clean, dry and lubricate the air going into your system. These high quality components improve productivity by reducing the risk of down time due to poor quality air supply.
  • Alemite offers a variety of packages and individual filters, gauges, regulators and lubricators, allowing you to choose the best option to meet your need.
  • Constant regulated pressure prevents damage to air operated equipment. Alemite regulators include a pressure relief feature which bleeds off excess pressure when adjustment to lower pressure occurs. Strainer is included with each regulator.
Features:
  • NA

Part Number Max Inlet
Pressure		 Inlet/Outlet Max Regulated
Pressure		 Pressure Gauge Air Gauge Inlet Weight
7604-B 300 PSI 1/4" NPTF(f) 125 PSI 323449-4 1/4" NPT(m) 2.3 Lb.
7604-1 300 PSI 1/4" NPTF(f) 125 PSI NA NA 2.1 Lb.
7606-1 300 PSI 3/8" NPTF(f) 125 PSI NA NA 2 Lb.
7608-B 300 PSI 1/2" NPTF(f) 125 PSI 323449-4 1/4" NPT(m) 3.5 Lb.
7608-1 300 PSI 1/2" NPTF(f) 125 PSI NA NA 3.2 Lb.
7612-B 250 PSI 3/4" NPTF(f) 125 PSI 323449-4 1/4" NPT(m) 6.3 Lb.
7616-B 250 PSI 1" NPT 125 PSI 323449-4 1/4" NPT(m) 6.3 Lb.
7624-A 300 PSI 1/4" NPTF(f) 125 PSI 391421 1/8" NPT(m) 2 Lb.

Alemite | SKF

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
