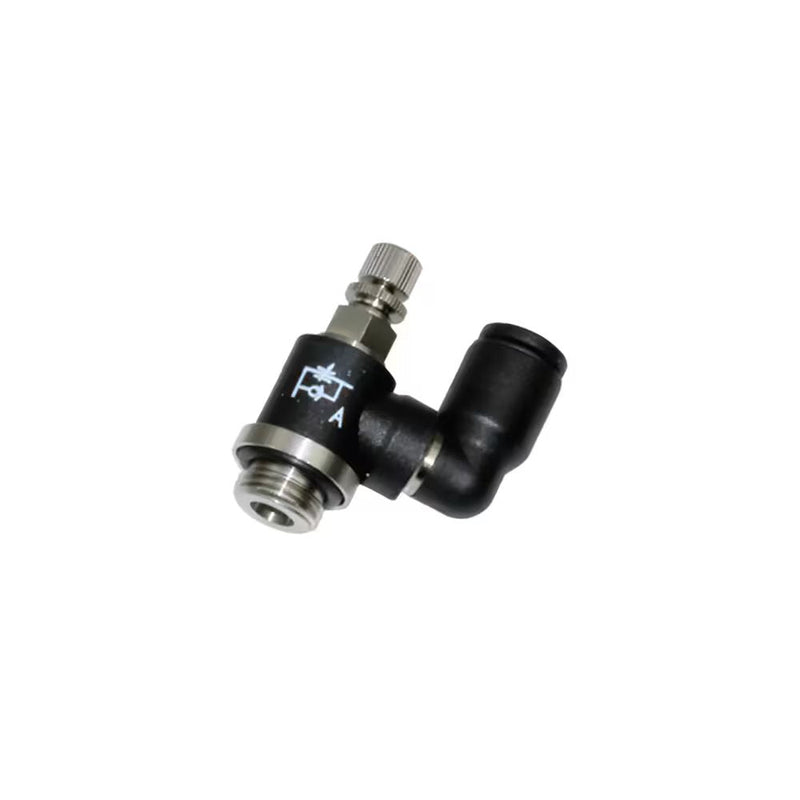

7640 04 10 by Parker | Legris Miniature Swivel Outlet Flow Regulator Exhaust | 4 mm Tube Size x 1/8" Male BSPP Thread | 7 mm Hex | Multi-Directional | Polymer | Pack of 10

Save $22.02

$302.42

$302.42 - $302.42

$302.42

$280.40

$280.40 - $280.40

$280.40

by Parker Hannifin
Flow Control Regulators:7640 Miniature Swivel Outlet Flow Regulator Exhaust, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 7640 04 10 Parker \| 10 \|
Series:	7640 Series
Shape (Orientation):	Multi-Directional
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Swivel, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	F	G	H (max)	H (min)	H1	H2	L	Kg
7640 04 19	4 mm	M5x0.8	6 mm	8.5 mm	26 mm	23.5 mm	14 mm	6.5 mm	19.5 mm	.011 Kg
7640 04 10	4 mm	1/8"	7 mm	8.5 mm	29.5 mm	27 mm	14 mm	8 mm	19.5 mm	.015 Kg
7640 06 19	6 mm	M5x0.8	6 mm	10.5 mm	26 mm	23.5 mm	16 mm	6.5 mm	21 mm	.001 Kg
7640 06 10	6 mm	1/8"	7 mm	10.5 mm	29.5 mm	27 mm	16 mm	8 mm	20.5 mm	.015 Kg
