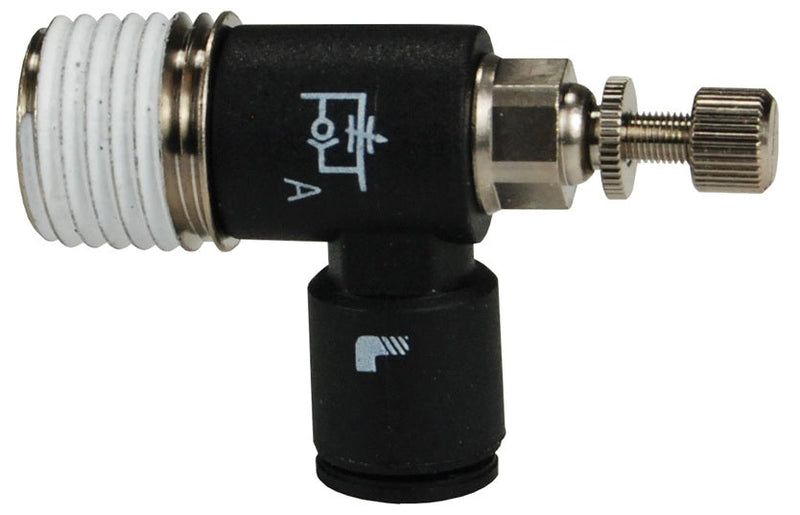

76600420 by Dixon Valve | Legris Push-to Connect Flow Control Valve | Miniature Exhaust | 5/32" Tube OD x 10-32 Male UNF | Nylon

76600420 by Dixon Valve | Legris Push-to Connect Flow Control Valve | Miniature Exhaust | 5/32" Tube OD x 10-32 Male UNF | Nylon

Save $2.35 Save $2.35
$25.16
$25.16 - $25.16
$25.16
$22.81
$22.81 - $22.81
$22.81

Dixon Valve & Coupling
Legris Push-to Connect Flow Control Valve | Miniature Exhaust

Controls the speed of a cylinder by regulating air exhaust.

Exhaust air is metered out through a specially designed fine adjustment screw.
Specifications for Variant SKU: 76600420 Dixon
Brand: Legris
Shape (Orientation): 90 Degree
Material(s): Nylon
Features:
  • Push-to-connect
  • Meter out flow control
  • One-piece design
Materials:
  • Body: Glass Reinforced Nylon 6.6
  • Seal: Nitrile
Specifications:
  • Control pressure range: 15 PSI to 145 PSI
  • Temperature range: 30°F to 158°F (-1°C to 70°C)
Part Number Tube O.D. Thread
76600420 5/32" 10-32 Male UNF Straight Thread
(Supplied with Gasket)
76650411 5/32" 1/8" Male NPT
76605620 1/4" 10-32 Male UNF Straight Thread
(Supplied with Gasket)
76655611 1/4" 1/8" Male NPT
76655614 1/4" 1/4" Male NPT
