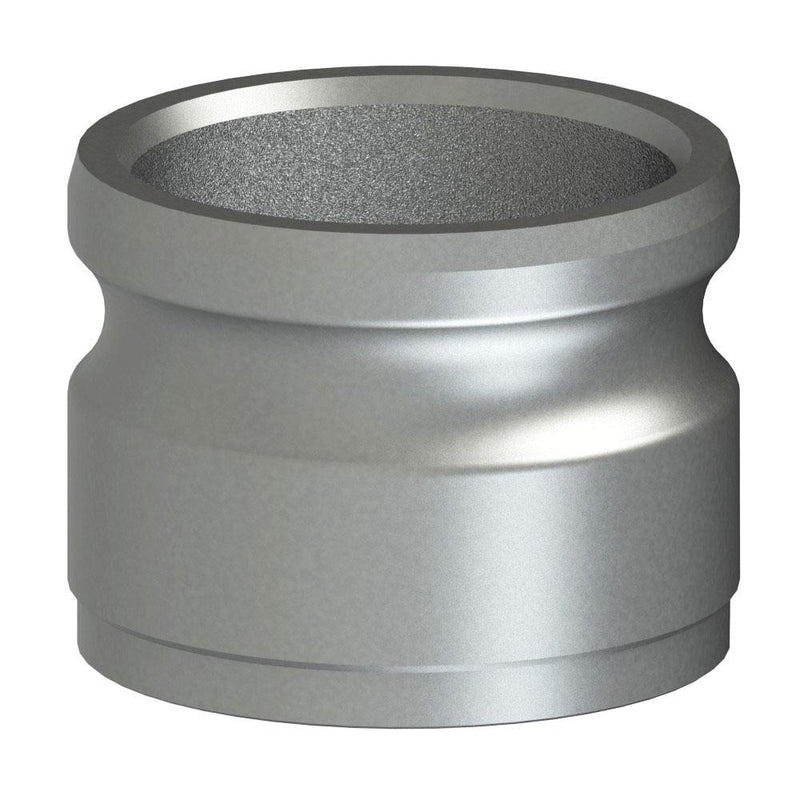

76601002 (10AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1" Adapter x Butt Weld for Schedule 10 Pipe | Hastelloy C

Name: 76601002 (10AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1" Adapter x Butt Weld for Schedule 10 Pipe | Hastelloy C
Brand: PT-Coupling
SKU: 76601002 PT-Coupling
Price: 398.45 USD
Availability: InStock

Save $235.22

$633.67

$633.67 - $633.67

$633.67

$398.45

$398.45 - $398.45

$398.45

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 10 Pipe | Hastelloy C

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 76601002 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	1in Male Cam & Groove, 1in Weld End
Material(s):	Hastelloy C

Features & Applications:
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid. Made in the USA


Part Name	Item #	Size	Overall Length (A)	Inside Diameter (B)	Max. Allowable Working Press. (PSI)*
10AWB	76601002	1"	1.74"	0.88"	250 PSI
15AWB	76601506	1-1/2"	2.06"	1.25"	250 PSI
30AWB	76603011	3"	2.75"	2.81"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
