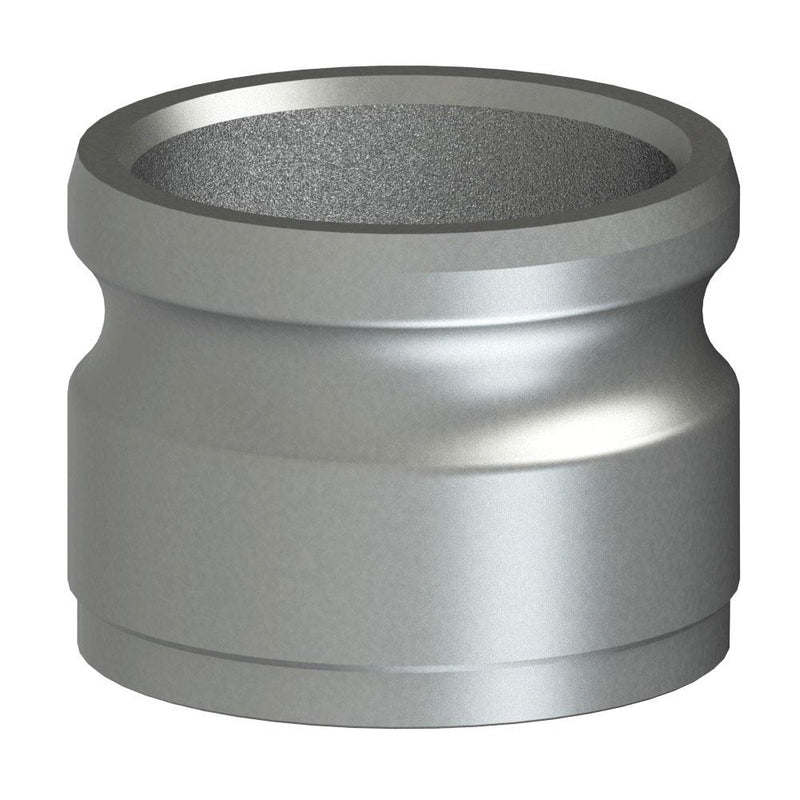

76601506 (15AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1-1/2" Adapter x Butt Weld for Schedule 10 Pipe | Hastelloy C

76601506 (15AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1-1/2" Adapter x Butt Weld for Schedule 10 Pipe | Hastelloy C

Save $193.52 Save $193.52
$521.33
$521.33 - $521.33
$521.33
$327.81
$327.81 - $327.81
$327.81

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 10 Pipe | Hastelloy C

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 76601506 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 1-1/2in Male Cam & Groove, 1-1/2in Weld End
Material(s): Hastelloy C
Features & Applications:
  • These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
  • Made in the USA
Part
Name		 Item # Size Overall
Length
(A)		 Inside
Diameter
(B)		 Max. Allowable
Working Press.
(PSI)*
10AWB 76601002 1" 1.74" 0.88" 250 PSI
15AWB 76601506 1-1/2" 2.06" 1.25" 250 PSI
30AWB 76603011 3" 2.75" 2.81" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
