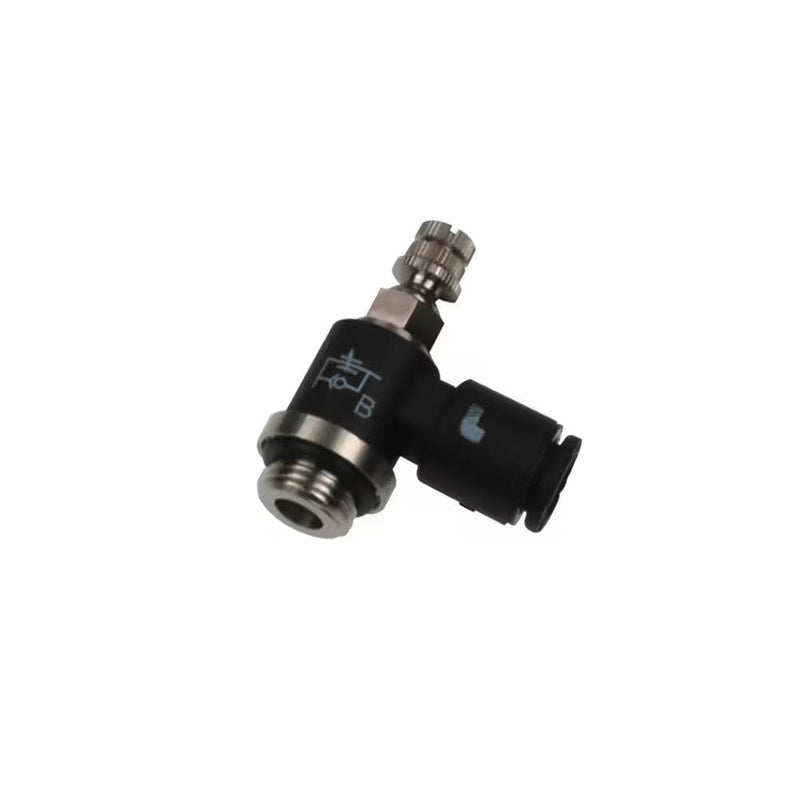

7669 08 17 by Parker | Legris Miniature Flow Regulator Supply | 8mm Tube Size x 3/8" Male BSPP Thread | 20mm Hex | 90° Elbow | Polymer | Pack of 10

Save $179.29

$448.22

$448.22 - $448.22

$448.22

$268.93

$268.93 - $268.93

$268.93

by Parker Hannifin
Flow Control Regulators:7669 Miniature Flow Regulator Supply, Male BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7669 08 17 Parker \| 10 \|
Series:	7669 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	F	G	H (max)	H (min)	L	L1	Kg
7669 03 09	3 mm	M3x0.5	6 mm	9 mm	26.5 mm	24 mm	17 mm	4.5 mm	.008 Kg
7669 03 19	3 mm	M5x0.8	6 mm	9 mm	27.5 mm	25 mm	17 mm	4.5 mm	.007 Kg
7669 04 19	4 mm	M5x0.8	6 mm	9 mm	27.5 mm	25 mm	17 mm	4 mm	.006 Kg
7669 04 10	4 mm	1/8"	7 mm	11.5 mm	31 mm	28 mm	18 mm	6 mm	.012 Kg
7669 06 19	6 mm	M5x0.8	6 mm	9 mm	27 mm	23.5 mm	18 mm	4.5 mm	.007 Kg
7669 06 10	6 mm	1/8"	7 mm	11.5 mm	31 mm	28 mm	18.5 mm	6 mm	.012 Kg
7669 06 13	6 mm	1/4"	8 mm	12 mm	34 mm	30.5 mm	19 mm	6 mm	.019 Kg
7669 08 10	8 mm	1/8"	13 mm	14 mm	32 mm	29 mm	26 mm	7 mm	.021 Kg
7669 08 13	8 mm	1/4"	16 mm	19 mm	33.5 mm	29.5 mm	27.5 mm	9.5 mm	.032 Kg
7669 08 17	8 mm	3/8"	20 mm	23 mm	41 mm	37 mm	29 mm	11.5 mm	.063 Kg
