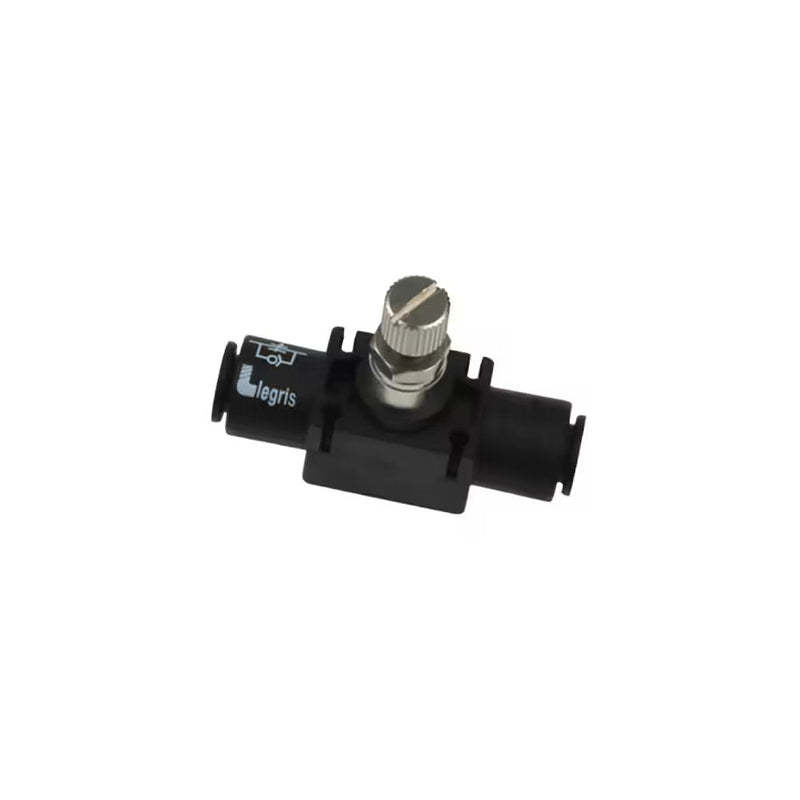

7770 60 00 by Parker | Legris In-Line Flow Control - One Way | 3/8" Push to Connect x 3/8" Push-to-Connect | 14 mm Hex | 2.87" Length | Straight | Nylon

7770 60 00 by Parker | Legris In-Line Flow Control - One Way | 3/8" Push to Connect x 3/8" Push-to-Connect | 14mm Hex | 2.87" Length | Straight | Nylon | Pack of 4

Save $167.01 Save $167.01
$417.52
$417.52 - $417.52
$417.52
$250.51
$250.51 - $250.51
$250.51

by Parker Hannifin
Flow Controls – In-line:7770/7772 - in-line flow control fractional inch

Package Quantity: 4 Units

Specifications for Variant SKU: 7770 60 00 Parker | 4 |
Series: 7770 Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass thread
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 30° to 158° F (-1° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number (One-Way) Part Number (Bi-Directional) ØD DN F H (min) H1 (max) K L L1 N1 N2 ØT Oz
7770 56 00 7772 56 00 1/4" .16" 8 mm 1.54" 1.74" .66" 2.00" .90" .43" .66" .12" 1.06 Oz
7770 60 00 - 3/8" .31" 14 mm 2.03" 2.38" .94" 2.87" 1.29" .62" 1.01" .16" 4.06 Oz
7770 62 00 - 1/2" .39" 14 mm 2.24" 2.63" 1.09" 3.35" 1.37" .78" 1.07" .16" 5.56 Oz
