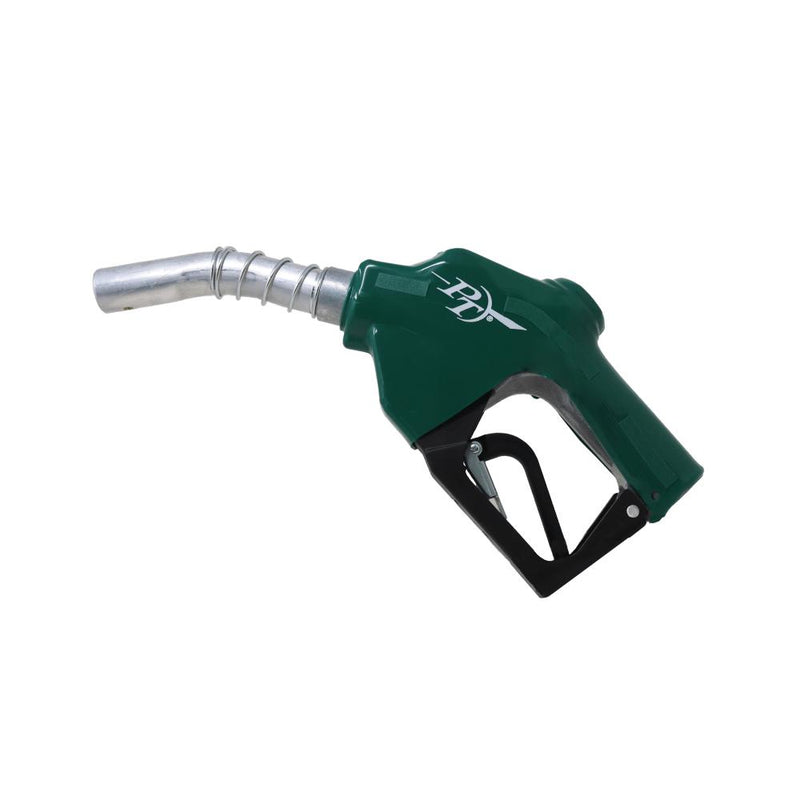

780056 (MCDS) by PT-Coupling | Automatic Prepay Diesel Nozzle | 1" NPT Inlet | 45 Flow Rate | 1-3/16" Spout Size

780056 (MCDS) by PT-Coupling | Automatic Prepay Diesel Nozzle | 1" NPT Inlet | 45 Flow Rate | 1-3/16" Spout Size

Save $151.59 Save $151.59
$408.38
$408.38 - $408.38
$408.38
$256.79
$256.79 - $256.79
$256.79

PT Coupling
Automatic Prepay Diesel Nozzle

High-Flow automatic diesel nozzle. Ideal for truck stops and fleet fueling. Offers "onehand" hold open clip with patented safety Kicker.

The "kicker" is designed to assure the hold-open clip will always release when automatic shut-off occurs.

Made in the USA.
Specifications for Variant SKU: 780056 PT-Coupling
Overview:
  • Ideal for truck stops and fleet fueling. Offers "one-hand" hold open clip with patented safety kicker. The "kicker" is designed to assure the hold-open clip will always release when automatic shut-off occurs.
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Provides the high flow capacity required by many truck stops and terminal operations.
  • Dual poppets for easy high pressure operation.
  • Pure Teflon® stem packing eliminates leaks.
  • MCDS is pressure activated.
  • Automatic shutoff.
  • Green scuff guard.
  • Made in the USA.
Safety Notes:
  • These nozzles are not for use with gravity flow tanks.
  • Not designed for use with small 12 volt pumps, AC utility pumps, farm pumps or consumer pumps.
Part
Name		 Item # Spout Size NPT Inlet Flow Rate Weight (LBS)
MCD Diesel Nozzle 780043 1-3/16" 1" 45 3.6 lbs.
MCDS Prepay Diesel Nozzle 780056 1-3/16" 1" 45 3.6 lbs.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
